std::tr2::dynamic_bitset< _WordT, _Alloc > Class Template Reference

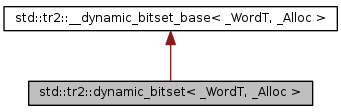

Inheritance diagram for std::tr2::dynamic_bitset< _WordT, _Alloc >:

List of all members.

Classes

Public Types

Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends


Detailed Description

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
class std::tr2::dynamic_bitset< _WordT, _Alloc >

The dynamic_bitset class represents a sequence of bits.

(Note that dynamic_bitset does not meet the formal requirements of a container. Mainly, it lacks iterators.)

The template argument, Nb, may be any non-negative number, specifying the number of bits (e.g., "0", "12", "1024*1024").

In the general unoptimized case, storage is allocated in word-sized blocks. Let B be the number of bits in a word, then (Nb+(B-1))/B words will be used for storage. B - NbB bits are unused. (They are the high-order bits in the highest word.) It is a class invariant that those unused bits are always zero.

If you think of dynamic_bitset as "a simple array of bits," be aware that your mental picture is reversed: a dynamic_bitset behaves the same way as bits in integers do, with the bit at index 0 in the "least significant / right-hand" position, and the bit at index Nb-1 in the "most significant / left-hand" position. Thus, unlike other containers, a dynamic_bitset's index "counts from right to left," to put it very loosely.

This behavior is preserved when translating to and from strings. For example, the first line of the following program probably prints "b('a') is 0001100001" on a modern ASCII system.

     #include <dynamic_bitset>
     #include <iostream>
     #include <sstream>

     using namespace std;

     int main()
     {
         long         a = 'a';
         dynamic_bitset   b(a);

         cout << "b('a') is " << b << endl;

         ostringstream s;
         s << b;
         string  str = s.str();
         cout << "index 3 in the string is " << str[3] << " but\n"
              << "index 3 in the bitset is " << b[3] << endl;
     }

Also see: http://gcc.gnu.org/onlinedocs/libstdc++/manual/bk01pt12ch33s02.html for a description of extensions.

Most of the actual code isn't contained in dynamic_bitset<> itself, but in the base class __dynamic_bitset_base. The base class works with whole words, not with individual bits. This allows us to specialize __dynamic_bitset_base for the important special case where the dynamic_bitset is only a single word.

Extra confusion can result due to the fact that the storage for __dynamic_bitset_base is a vector, and is indexed as such. This is carefully encapsulated.

Definition at line 570 of file dynamic_bitset.


Constructor & Destructor Documentation

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset ( const allocator_type &  __alloc = allocator_type()) [inline, explicit]

All bits set to zero.

Definition at line 722 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset ( size_type  __nbits,
unsigned long long  __val = 0ULL,
const allocator_type &  __alloc = allocator_type()
) [inline, explicit]

Initial bits bitwise-copied from a single word (others set to zero).

Definition at line 728 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
template<typename _CharT , typename _Traits , typename _Alloc1 >
std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset ( const std::basic_string< _CharT, _Traits, _Alloc1 > &  __str,
typename basic_string< _CharT, _Traits, _Alloc1 >::size_type  __pos = 0,
typename basic_string< _CharT, _Traits, _Alloc1 >::size_type  __n = std::basic_string<_CharT, _Traits, _Alloc1>::npos,
_CharT  __zero = _CharT('0'),
_CharT  __one = _CharT('1'),
const allocator_type &  __alloc = allocator_type()
) [inline, explicit]

Use a subset of a string.

Parameters:
__strA string of '0' and '1' characters.
__posIndex of the first character in __str to use.
__nThe number of characters to copy.
Exceptions:
std::out_of_rangeIf __pos is bigger the size of __str.
std::invalid_argumentIf a character appears in the string which is neither '0' nor '1'.

Definition at line 750 of file dynamic_bitset.

References std::tr2::dynamic_bitset< _WordT, _Alloc >::resize(), and std::basic_string< _CharT, _Traits, _Alloc >::size().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset ( const char *  __str,
const allocator_type &  __alloc = allocator_type()
) [inline, explicit]

Construct from a string.

Parameters:
__strA string of '0' and '1' characters.
Exceptions:
std::invalid_argumentIf a character appears in the string which is neither '0' nor '1'.

Definition at line 778 of file dynamic_bitset.

References std::tr2::dynamic_bitset< _WordT, _Alloc >::resize().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset ( const dynamic_bitset< _WordT, _Alloc > &  __b) [inline]

Copy constructor.

Definition at line 794 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset ( dynamic_bitset< _WordT, _Alloc > &&  __b) [inline]

Move constructor.

Definition at line 801 of file dynamic_bitset.


Member Function Documentation

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
bool std::tr2::dynamic_bitset< _WordT, _Alloc >::all ( ) const [inline]

Tests whether all the bits are on.

Returns:
True if all the bits are set.

Definition at line 1187 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
bool std::tr2::dynamic_bitset< _WordT, _Alloc >::any ( ) const [inline]

Tests whether any of the bits are on.

Returns:
True if at least one bit is set.

Definition at line 1195 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
void std::tr2::dynamic_bitset< _WordT, _Alloc >::append ( block_type  __block) [inline]

Append a block.

Definition at line 882 of file dynamic_bitset.

Referenced by std::tr2::dynamic_bitset< _WordT, _Alloc >::append().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
void std::tr2::dynamic_bitset< _WordT, _Alloc >::append ( initializer_list< block_type >  __il) [inline]
template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
template<typename _BlockInputIterator >
void std::tr2::dynamic_bitset< _WordT, _Alloc >::append ( _BlockInputIterator  __first,
_BlockInputIterator  __last
) [inline]

Append an iterator range of blocks.

Definition at line 900 of file dynamic_bitset.

References std::tr2::dynamic_bitset< _WordT, _Alloc >::append().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
void std::tr2::dynamic_bitset< _WordT, _Alloc >::clear ( ) [inline]

Clear the bitset.

Definition at line 860 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
size_type std::tr2::dynamic_bitset< _WordT, _Alloc >::count ( ) const [inline]

Returns the number of bits which are set.

Definition at line 1144 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
bool std::tr2::dynamic_bitset< _WordT, _Alloc >::empty ( ) const [inline]

Returns true if the dynamic_bitset is empty.

Definition at line 1158 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
size_type std::tr2::dynamic_bitset< _WordT, _Alloc >::find_first ( ) const [inline]

Finds the index of the first "on" bit.

Returns:
The index of the first bit set, or size() if not found.
See also:
find_next

Definition at line 1223 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
size_type std::tr2::dynamic_bitset< _WordT, _Alloc >::find_next ( size_t  __prev) const [inline]

Finds the index of the next "on" bit after prev.

Returns:
The index of the next bit set, or size() if not found.
Parameters:
__prevWhere to start searching.
See also:
find_first

Definition at line 1233 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::flip ( ) [inline]

Toggles every bit to its opposite value.

Definition at line 1039 of file dynamic_bitset.

Referenced by std::tr2::dynamic_bitset< _WordT, _Alloc >::operator~().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::flip ( size_type  __pos) [inline]

Toggles a given bit to its opposite value.

Parameters:
__posThe index of the bit.
Exceptions:
std::out_of_rangeIf __pos is bigger the size of the set.

Definition at line 1052 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
allocator_type std::tr2::dynamic_bitset< _WordT, _Alloc >::get_allocator ( ) const [inline]

Return the allocator for the bitset.

Definition at line 842 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
size_type std::tr2::dynamic_bitset< _WordT, _Alloc >::max_size ( ) const [inline]

Returns the maximum size of a dynamic_bitset object having the same type as *this. The real answer is max() * bits_per_block but is likely to overflow.

Definition at line 1165 of file dynamic_bitset.

References std::max().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
bool std::tr2::dynamic_bitset< _WordT, _Alloc >::none ( ) const [inline]

Tests whether any of the bits are on.

Returns:
True if none of the bits are set.

Definition at line 1203 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
size_type std::tr2::dynamic_bitset< _WordT, _Alloc >::num_blocks ( ) const [inline]

Returns the total number of blocks.

Definition at line 1153 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator&= ( const dynamic_bitset< _WordT, _Alloc > &  __rhs) [inline]

Operations on dynamic_bitsets.

Parameters:
__rhsA same-sized dynamic_bitset.

These should be self-explanatory.

Definition at line 915 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator&= ( dynamic_bitset< _WordT, _Alloc > &&  __rhs) [inline]

Operations on dynamic_bitsets.

Parameters:
__rhsA same-sized dynamic_bitset.

These should be self-explanatory.

Definition at line 922 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator-= ( const dynamic_bitset< _WordT, _Alloc > &  __rhs) [inline]

Operations on dynamic_bitsets.

Parameters:
__rhsA same-sized dynamic_bitset.

These should be self-explanatory.

Definition at line 943 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc> std::tr2::dynamic_bitset< _WordT, _Alloc >::operator<< ( size_type  __pos) const [inline]

Self-explanatory.

Definition at line 1209 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator<<= ( size_type  __pos) [inline]

Operations on dynamic_bitsets.

Parameters:
__posThe number of places to shift.

These should be self-explanatory.

Definition at line 958 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator= ( const dynamic_bitset< _WordT, _Alloc > &  __b) [inline]

Assignment.

Definition at line 819 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator= ( dynamic_bitset< _WordT, _Alloc > &&  __b) [inline]

Move assignment.

Definition at line 832 of file dynamic_bitset.

References std::tr2::dynamic_bitset< _WordT, _Alloc >::swap().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc> std::tr2::dynamic_bitset< _WordT, _Alloc >::operator>> ( size_type  __pos) const [inline]

Self-explanatory.

Definition at line 1213 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator>>= ( size_type  __pos) [inline]

Operations on dynamic_bitsets.

Parameters:
__posThe number of places to shift.

These should be self-explanatory.

Definition at line 971 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
reference std::tr2::dynamic_bitset< _WordT, _Alloc >::operator[] ( size_type  __pos) [inline]

Array-indexing support.

Parameters:
__posIndex into the dynamic_bitset.
Returns:
A bool for a 'const dynamic_bitset'. For non-const bitsets, an instance of the reference proxy class.
Note:
These operators do no range checking and throw no exceptions, as required by DR 11 to the standard.

Definition at line 1074 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
const_reference std::tr2::dynamic_bitset< _WordT, _Alloc >::operator[] ( size_type  __pos) const [inline]

Array-indexing support.

Parameters:
__posIndex into the dynamic_bitset.
Returns:
A bool for a 'const dynamic_bitset'. For non-const bitsets, an instance of the reference proxy class.
Note:
These operators do no range checking and throw no exceptions, as required by DR 11 to the standard.

Definition at line 1078 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator^= ( const dynamic_bitset< _WordT, _Alloc > &  __rhs) [inline]

Operations on dynamic_bitsets.

Parameters:
__rhsA same-sized dynamic_bitset.

These should be self-explanatory.

Definition at line 936 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::operator|= ( const dynamic_bitset< _WordT, _Alloc > &  __rhs) [inline]

Operations on dynamic_bitsets.

Parameters:
__rhsA same-sized dynamic_bitset.

These should be self-explanatory.

Definition at line 929 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc> std::tr2::dynamic_bitset< _WordT, _Alloc >::operator~ ( ) const [inline]

See the no-argument flip().

Definition at line 1061 of file dynamic_bitset.

References std::tr2::dynamic_bitset< _WordT, _Alloc >::flip().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
void std::tr2::dynamic_bitset< _WordT, _Alloc >::push_back ( bool  __bit) [inline]

Push a bit onto the high end of the bitset.

Definition at line 870 of file dynamic_bitset.

References std::tr2::dynamic_bitset< _WordT, _Alloc >::size().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::reset ( ) [inline]

Sets every bit to false.

Definition at line 1014 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::reset ( size_type  __pos) [inline]

Sets a given bit to false.

Parameters:
__posThe index of the bit.
Exceptions:
std::out_of_rangeIf __pos is bigger the size of the set.

Same as writing set(__pos, false).

Definition at line 1028 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
void std::tr2::dynamic_bitset< _WordT, _Alloc >::resize ( size_type  __nbits,
bool  __value = false
) [inline]

Resize the bitset.

Definition at line 849 of file dynamic_bitset.

Referenced by std::tr2::dynamic_bitset< _WordT, _Alloc >::dynamic_bitset(), and std::tr2::operator>>().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::set ( ) [inline]

Sets every bit to true.

Definition at line 989 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
dynamic_bitset<_WordT, _Alloc>& std::tr2::dynamic_bitset< _WordT, _Alloc >::set ( size_type  __pos,
bool  __val = true
) [inline]

Sets a given bit to a particular value.

Parameters:
__posThe index of the bit.
__valEither true or false, defaults to true.
Exceptions:
std::out_of_rangeIf __pos is bigger the size of the set.

Definition at line 1003 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
size_type std::tr2::dynamic_bitset< _WordT, _Alloc >::size ( ) const [inline]

Returns the total number of bits.

Definition at line 1149 of file dynamic_bitset.

Referenced by std::tr2::operator>>(), and std::tr2::dynamic_bitset< _WordT, _Alloc >::push_back().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
void std::tr2::dynamic_bitset< _WordT, _Alloc >::swap ( dynamic_bitset< _WordT, _Alloc > &  __b) [inline]

Swap with another bitset.

Definition at line 809 of file dynamic_bitset.

Referenced by std::tr2::dynamic_bitset< _WordT, _Alloc >::operator=().

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
bool std::tr2::dynamic_bitset< _WordT, _Alloc >::test ( size_type  __pos) const [inline]

Tests the value of a bit.

Parameters:
__posThe index of a bit.
Returns:
The value at __pos.
Exceptions:
std::out_of_rangeIf __pos is bigger the size of the set.

Definition at line 1175 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
template<typename _CharT = char, typename _Traits = std::char_traits<_CharT>, typename _Alloc1 = std::allocator<_CharT>>
std::basic_string<_CharT, _Traits, _Alloc1> std::tr2::dynamic_bitset< _WordT, _Alloc >::to_string ( _CharT  __zero = _CharT('0'),
_CharT  __one = _CharT('1')
) const [inline]

Returns a character interpretation of the dynamic_bitset.

Returns:
The string equivalent of the bits.

Note the ordering of the bits: decreasing character positions correspond to increasing bit positions (see the main class notes for an example).

Definition at line 1114 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
unsigned long long std::tr2::dynamic_bitset< _WordT, _Alloc >::to_ullong ( ) const [inline]

Returns a numerical interpretation of the dynamic_bitset.

Returns:
The integral equivalent of the bits.
Exceptions:
std::overflow_errorIf there are too many bits to be represented in an unsigned long.

Definition at line 1099 of file dynamic_bitset.

template<typename _WordT = unsigned long long, typename _Alloc = std::allocator<_WordT>>
unsigned long std::tr2::dynamic_bitset< _WordT, _Alloc >::to_ulong ( ) const [inline]

Returns a numerical interpretation of the dynamic_bitset.

Returns:
The integral equivalent of the bits.
Exceptions:
std::overflow_errorIf there are too many bits to be represented in an unsigned long.

Definition at line 1089 of file dynamic_bitset.


The documentation for this class was generated from the following file:
