The table that follows lists every example in the Using Swing Components lesson, with links to required files and to where each example is discussed. The first column of the table has links to JNLP files that let you run the examples using Java^TM Web Start.

---

NOTE: Release 6.0 is required to run all applets and Java Web Start examples. Most examples will run on an earlier release but you must compile and run them locally.

---

To run an example using Java Web Start, click the [Run] link in the first column of the table. The first time you run an example, there will be a delay while Java Web Start downloads the JAR file containing the class files for this lesson's examples. Afterward, the examples should execute more quickly. If you have trouble using Java Web Start, see Installing and Using Java Web Start.

Compiling and Running the Examples Locally

---

Note: Examples are applications unless noted otherwise. See Getting Started with Swing for details about releases and instructions on compiling and running programs.

---

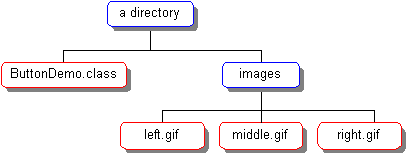

You can get the source, image, and other files required for all these examples by downloading the Tutorial Examples bundle, which contains the files in the correct hierarchy. If you download an individual example, take care to have all the necessary files in the proper hierarchy when you compile and run it. For example, many examples expect their image files to be in a directory named images that's in the same directory as the example's class files. Here's a typical setup:

You can find out which files each example needs by consulting the following table or by looking at the comments at the beginning of each source file.

Example	Source Files (first file has the main method, except for examples that run only as applets)	Image and Other Files	Where Described
BorderDemo [Run]	BorderDemo.java	wavy.gif	How to Use Borders
ButtonDemo [Run]	ButtonDemo.java	right.gif, middle.gif, left.gif	How to Use Buttons, ...
ButtonHtmlDemo [Run]	ButtonHtmlDemo.java	right.gif, middle.gif, left.gif	How to Use Buttons, ...
CheckBoxDemo [Run]	CheckBoxDemo.java	All of the images in the images/geek directory.	How to Use Buttons, ...
ColorChooserDemo [Run]	ColorChooserDemo.java		How to Use Color Choosers
ColorChooserDemo2 [Run]	ColorChooserDemo2.java    CrayonPanel.java	red.gif, yellow.gif, green.gif, blue.gif	How to Use Color Choosers
ComboBoxDemo [Run]	ComboBoxDemo.java	Bird.gif, Cat.gif, Dog.gif, Rabbit.gif, Pig.gif	How to Use Combo Boxes
ComboBoxDemo2 [Run]	ComboBoxDemo2.java		How to Use Combo Boxes
Converter [Run]	Converter.java    ConversionPanel.java    ConverterRangeModel.java    FollowerRangeModel.java    Unit.java		How to Use Panels; Using Models
CustomComboBoxDemo [Run]	CustomComboBoxDemo.java	Bird.gif, Cat.gif, Dog.gif, Rabbit.gif, Pig.gif	How to Use Combo Boxes
CustomIconDemo [Run]	CustomIconDemo.java    ArrowIcon.java	middle.gif	How to Use Icons
DialogDemo [Run]	DialogDemo.java    CustomDialog.java	middle.gif	How to Use Dialogs
DynamicTreeDemo [Run]	DynamicTreeDemo.java    DynamicTree.java		How to Use Trees
FileChooserDemo *	FileChooserDemo.java	Open16.gif, Save16.gif	How to Use File Choosers
FileChooserDemo2 *	FileChooserDemo2.java    ImageFileView.java    ImageFilter.java    ImagePreview.java    Utils.java	jpgIcon.gif, gifIcon.gif, tiffIcon.gif, pngIcon.png	How to Use File Choosers
FormattedTextFieldDemo [Run]	FormattedTextFieldDemo.java		How to Use Formatted Text Fields
FormatterFactoryDemo [Run]	FormatterFactoryDemo.java		How to Use Formatted Text Fields
FrameDemo [Run]	FrameDemo.java		How to Make Frames
FrameDemo2 [Run]	FrameDemo2.java	FD.jpg	How to Make Frames
Framework [Run]	Framework.java		Nowhere
GenealogyExample [Run]	GenealogyExample.java    GenealogyModel.java    GenealogyTree.java    Person.java		How to Use Trees
GlassPaneDemo [Run]	GlassPaneDemo.java		How to Use Root Panes
HtmlDemo [Run]	HtmlDemo.java		Using HTML in Swing Components
IconDemoApplet [Run]	IconDemoApplet.java (an applet)	right.gif, left.gif, dimmedRight.gif, dimmedLeft.gif, stickerface.gif, lainesTongue.gif, kathyCosmo.gif, ewanPumpkin.gif, To run the applet: IconDemoApplet.html To view the <APPLET> tag: IconDemoApplet.atag	How to Use Icons
InternalFrameDemo [Run]	InternalFrameDemo.java    MyInternalFrame.java		How to Use Internal Frames
JWSFileChooserDemo [Run] Note: This demo's Save button is disabled to avoid problems associated with bug #4761577.)	JWSFileChooserDemo.java	Open16.gif, Save16.gif	How to Use File Choosers
LabelDemo [Run]	LabelDemo.java	middle.gif	How to Use Labels
LayeredPaneDemo [Run]	LayeredPaneDemo.java	dukeWaveRed.gif	How to Use Layered Panes
LayeredPaneDemo2 [Run]	LayeredPaneDemo2.java	dukeWaveRed.gif	How to Use Layered Panes
ListDemo [Run]	ListDemo.java		How to Use Lists
ListDialogRunner [Run]	ListDialogRunner.java    ListDialog.java		How to Use Buttons, ...
MenuDemo [Run]	MenuDemo.java	middle.gif	How to Use Menus
MenuGlueDemo [Run]	MenuGlueDemo.java		How to Use Menus
MenuLayoutDemo [Run]	MenuLayoutDemo.java		How to Use Menus
MenuLookDemo [Run]	MenuLookDemo.java	middle.gif	How to Use Menus
MenuSelectionManagerDemo [Run]	MenuSelectionManagerDemo.java	middle.gif	How to Use Menus
PasswordDemo [Run]	PasswordDemo.java		How to Use Password Fields
PopupMenuDemo [Run]	PopupMenuDemo.java	middle.gif	How to Use Menus
ProgressBarDemo [Run]	ProgressBarDemo.java		How to Monitor Progress
ProgressBarDemo2 [Run]	ProgressBarDemo2.java		How to Monitor Progress
ProgressMonitorDemo [Run]	ProgressMonitorDemo.java		How to Monitor Progress
RadioButtonDemo [Run]	RadioButtonDemo.java	Bird.gif, Cat.gif, Dog.gif, Rabbit.gif, Pig.gif	How to Use Buttons, ...
RootLayeredPaneDemo [Run]	RootLayeredPaneDemo.java	dukeWaveRed.gif	How to Use Root Panes
ScrollDemo [Run]	ScrollDemo.java    Rule.java    Corner.java    ScrollablePicture.java	youngdad.jpeg	How to Use Scroll Panes
ScrollDemo2 [Run]	ScrollDemo2.java		How to Use Scroll Panes
SharedModelDemo [Run]	SharedModelDemo.java		Using Models
SimpleTableDemo [Run]	SimpleTableDemo.java		How to Use Tables
SimpleTableSelectionDemo [Run]	SimpleTableSelectionDemo.java		How to Use Tables
SliderDemo [Run]	SliderDemo.java	All of the images in the images/doggy directory.	How to Use Sliders
SliderDemo2 [Run]	SliderDemo2.java	All of the images in the images/doggy directory.	How to Use Sliders
SliderDemo3 [Run]	SliderDemo3.java	All of the images in the images/doggy directory.	How to Use Sliders
SpinnerDemo [Run]	SpinnerDemo.java    SpringUtilities.java    CyclingSpinnerListModel.java		How to Use Spinners
SpinnerDemo2 [Run]	SpinnerDemo2.java    SpinnerDemo.java    SpringUtilities.java    CyclingSpinnerListModel.java		How to Use Spinners
SpinnerDemo3 [Run]	SpinnerDemo3.java    SpringUtilities.java    CyclingSpinnerListModel.java		How to Use Spinners
SpinnerDemo4 [Run]	SpinnerDemo4.java    SpringUtilities.java		How to Use Spinners
SplitPaneDemo [Run]	SplitPaneDemo.java	imagenames.properties and all of the image files listed in it.	How to Use Split Panes
SplitPaneDemo2 [Run]	SplitPaneDemo2.java	imagenames.properties and all of the image files listed in it.	How to Use Split Panes
SplitPaneDividerDemo [Run]	SplitPaneDividerDemo.java    SizeDisplayer.java	Cat.gif, Dog.gif	How to Use Split Panes
TabbedPaneDemo [Run]	TabbedPaneDemo.java	middle.gif	How to Use Tabbed Panes
TabComponentsDemo [Run]	TabComponentsDemo.java    ButtonTabComponent.java		How to Use Tabbed Panes
TableDemo [Run]	TableDemo.java		How to Use Tables
TableDialogEditDemo [Run]	TableDialogEditDemo.java    ColorEditor.java    ColorRenderer.java		How to Use Tables
TableFTFEditDemo	TableFTFEditDemo.java    IntegerEditor.java		How to Use Tables
TableRenderDemo [Run]	TableRenderDemo.java		How to Use Tables
TableFilterDemo [Run]	TableFilterDemo.java    SpringUtilities.java		How to Use Tables
TablePrintDemo	TablePrintDemo.java		How to Use Tables
TableSorterDemo [Run]	TableSorterDemo.java    TableSorter.java		How to Use Tables
TableToolTipsDemo [Run]	TableToolTipsDemo.java		How to Use Tables
TextComponentDemo [Run]	TextComponentDemo.java    DocumentSizeFilter.java		Text Component Features
TextDemo [Run]	TextDemo.java		How to Use Text Fields and How to Use Text Areas
TextInputDemo [Run]	TextInputDemo.java		How to Use Formatted Text Fields
TextSamplerDemo [Run]	TextSamplerDemo.java	Pig.gif, sound.gif, dukeWaveRed.gif, TextSamplerDemoHelp.html	Using Text Components and How to Use Editor Panes and Text Panes
ToolBarDemo [Run]	ToolBarDemo.java	JavaTM Look and Feel Graphics Repository (jlfgr-1_0.jar)	How to Use Tool Bars
ToolBarDemo2 [Run]	ToolBarDemo2.java	JavaTM Look and Feel Graphics Repository (jlfgr-1_0.jar)	How to Use Tool Bars
TopLevelDemo [Run]	TopLevelDemo.java		Using Top-Level Containers
TreeDemo [Run]	TreeDemo.java	Several html files.	How to Use Trees
TreeIconDemo [Run]	TreeIconDemo.java	middle.gif and several html files.	How to Use Trees
TreeIconDemo2 [Run]	TreeIconDemo2.java	middle.gif and several html files.	How to Use Trees
TumbleItem [Run] To run this as an applet (using JavaTM Plug-In): How to Make Applets To view the <APPLET> tag: TumbleItem.atag	TumbleItem.java (an applet)	All of the images in the images/tumble directory.	How to Make Applets

* This application is not currently available with Java Web Start because we distribute only unsigned JAR files. To run it, download and compile it, and then run it as an application.

geek-----.gif, geek-c---.gif, geek--g--.gif, geek---h-.gif,
geek----t.gif, geek-cg--.gif, geek-c-h-.gif, geek-c--t.gif,
geek--gh-.gif, geek--g-t.gif, geek---h-.gif, geek-cg-t.gif,
geek-cgh-.gif, geek-c-ht.gif, geek--ght.gif, geek-cght.gif

T0.gif, T1.gif, T2.gif, T3.gif, T4.gif, T5.gif, T6.gif,
T7.gif, T8.gif, T9.gif, T10.gif, T11.gif, T12.gif, T13.gif

T1.gif, T2.gif, T3.gif, T4.gif, T5.gif,
T6.gif, T7.gif, T8.gif, T9.gif, T10.gif,
T11.gif, T12.gif, T13.gif, T14.gif, T15.gif,
T16.gif, T17.gif

---

Note:  These files are used by SplitPaneDemo and SplitPaneDemo2, which get the names of the images from a properties resource bundle backed by imagenames.properties. If you compile and run either program, put the imagenames.properties file in the same directory as the program's class files, and the image files in a subdirectory named images. The resource bundle contains a space-separated list of filenames that the program parses the into a Vector. You can learn more about resource bundles in Isolating Locale-Specific Data.

---

Bird.gif, Cat.gif, Dog.gif, Rabbit.gif, Pig.gif, dukeWaveRed.gif, kathyCosmo.gif, lainesTongue.gif, left.gif, middle.gif, right.gif, stickerface.gif

TreeDemoHelp.html
arnold.html
bloch.html
chanlee.html
jls.html
swingtutorial.html
tutorial.html
tutorialcont.html
vm.html
