7    Network Information Service

The Network Information Service (NIS, formerly Yellow Pages) is a distributed data lookup service for sharing information on a local area network (LAN). NIS allows you to coordinate the distribution of database information throughout your networked environment.

This chapter describes describes the NIS environment, how to plan for NIS, how to configure your system for NIS, and how to manage NIS servers and clients.

For introductory information on NIS, see nis_intro(7).


[Return to Library] [Contents] [Previous Chapter] [Next Section] [Next Chapter] [Index] [Help]


7.1    The NIS Environment

In a NIS environment, systems can have the following roles:

Figure 7-1 shows a domain in which there is a master server, two slave servers, and some clients.

Figure 7-1: NIS Configuration

By default, NIS distributes the aliases, group, hosts, mail.aliases, netgroup, networks, passwd, protocols, rpc, and services databases. (The mail.aliases and netgroup database are created exclusively for NIS.) You can also create and distribute site-specific customized databases, such as NFS automount maps. For information on creating automount maps for distribution by NIS, see Appendix C. For information on creating and distributing other site-specific NIS maps, see the Section 7.4.5.

In a C2 secure environment, you can run NIS in a secure mode; thereby creating secure and nonsecure versions of the NIS maps. See Security for more information.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.2    NIS Planning

This section describes those tasks you need to do before configuring NIS.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.2.1    Verifying That the Additional Networking Services Subset is Installed

For NIS servers, verify that the Additional Networking Servives subset is installed by entering the following command:

setld -i | grep OSFINET

If it is not installed, install it by using the setld command. For more information on installing subsets, see setld(8), the Installation Guide, or the System Administration manual.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.2.2    Preparing for the Configuration

Appendix A contains a worksheet that you can use to record the information that you need to configure NIS. If you are viewing this manual online, you can use the print feature to print a copy of this part of the worksheet.

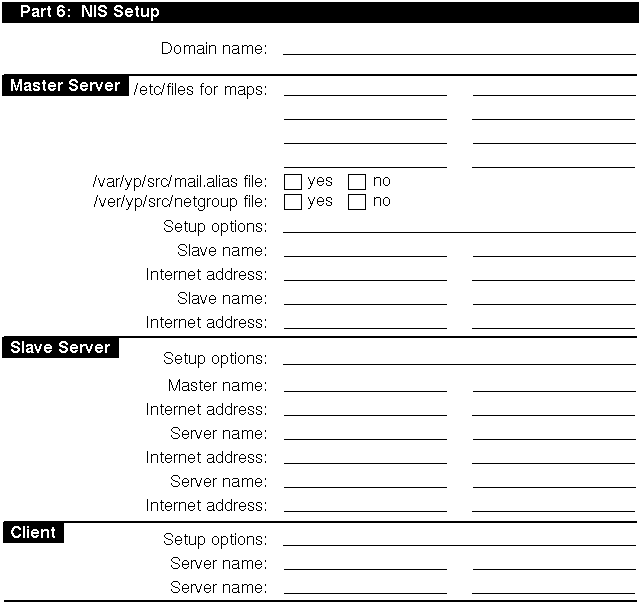

Figure 7-2 shows Part 6 of the Configuration Worksheet. The following sections explain the information you need to record in Part 6 of the worksheet.

Figure 7-2: Configuration Worksheet, Part 6

Domain name
The domain name (1 to 31 alphanumeric characters). All systems in the domain must declare the same domain name.

An NIS domain is an administrative entity that consists of a master server, one or more slave servers, and numerous clients. All systems in a domain share the same set of NIS database files.

Note

A NIS domain name is not the same as a BIND domain name. If you configure the system with an incorrect NIS domain name, all NIS-related operations (such as logging in and ls -l commands) hang for several minutes, then fail.

Host's role
NIS runs on each system in your network. You must decide what role each system will play within the NIS domain that you are creating. Select one host to be the master server; there can be only one master server for each domain. Select one or more hosts to be slave servers. The rest of the hosts should run as NIS clients.

Note

The master server and all slave servers are also considered to be NIS clients.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.2.2.1    Master Server

/etc files for maps
The files you want to make into NIS maps. Choose from the following list:

/var/yp/src/mail.aliases file
The mail.aliases file defines network-wide mail aliases. If you want to define and distribute mail aliases on your network, check YES; otherwise, check NO.

If you choose not to create a mail.aliases file, the nissetup command issues an informational message that it could not find the mail.aliases file while it is building the NIS maps. For information on defining mail aliases, see aliases(4).

/var/yp/src/netgroup file
The netgroup file defines network-wide groups and is used for permission checking when doing remote mounts, remote logins, and remote shells. If you want to define and distribute netgroup information on your network, check YES; otherwise, check NO.

If you choose not to create a netgroup file, while it is building the NIS maps, the nissetup command issues an informational message that it could not find the netgroup file. For information on defining network groups, see netgroup(4).

Setup options
The list of setup options for master servers is as follows. Write down the options in the appropriate place in the worksheet.

Slave name
The name of each slave server in the domain.

IP address
The IP address of each slave server in the domain.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.2.2.2    Slave Server

Setup options
The list of setup options for slave servers is as follows. Write down the options in the appropriate place in the worksheet.

Master name
The host name of the master server in your domain.

IP address
The IP address of the master server in your domain.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.2.2.3    Client

Setup options
The list of setup options for clients is as follows. Write down the options in the appropriate place in the worksheet.

Server name
The name of a slave server in your domain. Specify at least three.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.3    Configuring NIS

To configure NIS, use the the nissetup script. You can configure a master server, slave server, or client. See nissetup(8) for more information.

To invoke nissetup, do the following:

  1. Click on the Application Manager icon on the CDE front panel.

  2. Double-click on the System_Admin application group icon.

  3. Double-click on the Digital System_Management_Utilities application group icon.

  4. Double-click on the Configuration application group icon.

  5. Double-click on the NIS Setup application icon.

Note

For systems without graphics capabilities, you can invoke nissetup from the command line.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.3.1    Configuring a NIS Master Server

You must configure the master NIS server before you can configure the other systems. Prior to using the nissetup script, you must log in as superuser and complete the following presetup tasks:

  1. Copy into the /var/yp/src directory the local /etc files that you intend to make into NIS maps for distribution.

    If a file is absent from the /var/yp/src directory while it is building the default NIS maps, the nissetup command issues an informational message that it could not find that particular file and continues building the maps.

    Note

    If you copied the passwd file into the /var/yp/src directory, remove the root entry from the file.

  2. Optionally, create the /var/yp/src/mail.aliases file.

  3. Optionally, create the /var/yp/src/netgroup file.

  4. Edit the /var/yp/Makefile file.

    If you are using the NIS master server to serve the /etc/auto.master and /etc/auto.home automount maps, you must remove the comment sign (#) from the beginning of each of the following lines. These lines were added to the Makefile for the automount daemon.


    .
    .
    .
    #all: passwd group hosts networks rpc services protocols netgroup \ # aliases auto.home auto.master
    .
    .
    .
    #$(YPDBDIR)/$(DOM)/auto.home.time: $(DIR)/auto.home # -@if [ -f $(DIR)/auto.home ]; then \ # $(SED) -e "/^#/d" -e s/#.*$$// $(DIR)/auto.home | \ # $(MAKEDBM) - $(YPDBDIR)/$(DOM)/auto.home; \ # $(TOUCH) $(YPDBDIR)/$(DOM)/auto.home.time; \ # $(ECHO) "updated auto.home"; \ # if [ ! $(NOPUSH) ]; then \ # $(YPPUSH) auto.home; \ # $(ECHO) "pushed auto.home"; \ # else \ # : ; \ # fi \ # else \ # $(ECHO) "couldn't find $(DIR)/auto.home"; \ # fi # #$(YPDBDIR)/$(DOM)/auto.master.time: $(DIR)/auto.master # -@if [ -f $(DIR)/auto.master ]; then \ # $(SED) -e "/^#/d" -e s/#.*$$// $(DIR)/auto.master | \ # $(MAKEDBM) - $(YPDBDIR)/$(DOM)/auto.master; \ # $(TOUCH) $(YPDBDIR)/$(DOM)/auto.master.time; \ # $(ECHO) "updated auto.master"; \ # if [ ! $(NOPUSH) ]; then \ # $(YPPUSH) auto.master; \ # $(ECHO) "pushed auto.master"; \ # else \ # : ; \ # fi \ # else \ # $(ECHO) "couldn't find $(DIR)/auto.master"; \ # fi
    .
    .
    .
    #auto.home: $(YPDBDIR)/$(DOM)/auto.home.time #auto.master: $(YPDBDIR)/$(DOM)/auto.master.time
    .
    .
    .
    #$(DIR)/auto.home: #$(DIR)/auto.master:

    Place a comment sign (#) in front of the following lines:

    all: passwd group hosts networks rpc services protocols netgroup \
    aliases


    If you are using the NIS master server to serve other site-specific maps, you must add an entry for them to the Makefile. See the Section 7.4.7.1 for information on adding entries for site-specific NIS maps, other than the /etc/auto.master and /etc/auto.home automount maps, to the /var/yp/Makefile file.

  5. Copy the automount maps, or any other site-specific maps, to the /var/yp/src directory.

    For information on creating automount maps, see Appendix C. For information on creating other site-specific maps, see the Section 7.4.7.1.

To continue to set up the master server, log in as root and run the nissetup script:

  1. Invoke the nissetup script either from the CDE Desktop or by entering the following command:

    /usr/sbin/nissetup

    A message appears reminding you that your network must be established before setting up NIS, and that in order to set up an NIS server you must have the Additional Networking Services subset installed.

  2. Enter c to continue.

  3. Press Return following the script's explanation of nissetup, and then press Return again after the script explains the three types of systems in an NIS domain.

  4. Enter and confirm your system's NIS domain name.

  5. Choose option 1 to indicate that you are configuring the master server.

  6. Following the nissetup script's explanation that there can be only one master server configured for each NIS domain, enter c and indicate whether you want to run the yppasswdd daemon.

    Digital recommends that you run the yppasswdd daemon on the master NIS server.

  7. Enter the names of hosts that will be configured as slave servers for this domain.

    If you enter the name of a host that is not listed in the master server's /etc/hosts file, the nissetup script prompts you for its IP address.

    Enter the names of the SLAVE servers in the test_domain domain.
    Press Return to terminate the list.


       Host name of slave server:  host2
       Host name of slave server:  host3

          Cannot find host3 in the file /etc/hosts.
          To add host3 to the /etc/hosts file you MUST
                    know host3's Internet (IP) address.

      Would you like to add host3 to the /etc/hosts file         (y/n) [y]?  y
      What is host3's Internet (IP) address [no default] ?  120.105.1.28
      Is 120.105.1.28 correct (y/n) [no default] ?  y
       Hostname of slave server:  [Return]

    The nissetup script displays the list of servers that you entered and gives you the option to redo it to correct errors or to continue with the setup procedure.

    The nissetup script then creates the default NIS maps, displaying messages similar to the following as it does:

    Creating default NIS maps.  Please wait...
    updated passwd
    updated group
    updated hosts
    updated networks
    updated rpc
    updated services
    updated protocols
    updated netgroup
    Finished creating default NIS maps.


  8. Indicate whether you want to use the -s security option.

    If you choose to the -s option, the ypbind process runs in a secure mode.

  9. Indicate whether you want to use the -S security option.

    If you choose to run the -S option, you must enter the names of up to four NIS servers.

    The nissetup script automatically places the host name of the server you are configuring first. Press Return when you are done entering server names.

    Digital recommends that you use the -S option.

  10. Indicate whether you want to allow ypset requests on your system.

    Digital recommends that you disallow all ypset requests. Press Return to accept the default, and confirm your choice.

  11. Indicate whether you want your system to use all of the NIS databases served by the master server.

    Digital recommends that you use all of the NIS databases.

    If you choose to use all of the NIS databases (either enter y or accept the default), the nissetup script edits the /etc/svc.conf file to include the string yp for each database. It also edits the /etc/passwd and /etc/group files to include a plus sign followed by a colon (+:) at the end of each file. This enables your system to use NIS for each database listed. This symbol enables the files to be distributed by NIS. Continue with step 18.

    If you choose not to use all of the NIS databases enter n, continue with the next step.

  12. Indicate whether you want to add a plus sign followed by a colon (+:) to the end of the local /etc/passwd and /etc/group files.

    For your system to use the NIS served passwd database, group database, or both, +: must be the last line in the file or files you want served by NIS. This applies to the passwd and group databases only.

    Note

    The service order selection for the passwd and group databases is handled by the Security Integration Architecture (SIA). If BSD is selected for passwd and group information in the /etc/sia/matrix.conf file, only the +: is required for your system to search NIS.

  13. Indicate whether you want to use NIS to obtain information for all of the default databases (other than the /etc/passwd and /etc/group which were defined in step 11).

    If you answer yes, nissetup edits the svc.conf file to include the string yp for each database. The nissetup script then skips the next question and continues at step 14.

    If you answer no, nissetup continues with the next question.

  14. Indicate whether you want the nissetup script to invoke the svcsetup script. (Note, if you answered yes to step 16, skip this step.)

    If you answer yes, nissetup invokes the svcsetup script, which allows you to modify the database services selection file (the svc.conf file). See Section 7.3.4 for information on modifying the svc.conf file.

    If you answer no, nissetup continues with the next question. Note that you must edit the svc.conf file if you want your system to use NIS to obtain database information other than passwd and group information. See svcsetup(8) for information on editing the svc.conf file with svcsetup or manually.

  15. Indicate whether to start the NIS daemons automatically.

    If you answer yes, nissetup starts the daemons.

    If you answer no, use the following command to start the daemons manually after nissetup exits and returns you to the system prompt (#):

    /sbin/init.d/nis start


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.3.2    Configuring a Slave Server

To configure a slave server, do the following:

  1. Invoke the nissetup from the CDE Desktop or by entering the following command:

    /usr/sbin/nissetup

    A message appears reminding you that your network must be established before setting up NIS, and that in order to set up an NIS server you must have the Additional Networking Services subset installed.

  2. Enter c to continue.

  3. Press Return following the script's explanation of nissetup, and then press Return again after the script explains the three types of systems in an NIS domain.

  4. Enter and confirm your system's NIS domain name.

  5. Choose option 2 to indicate that you are configuring a slave server:

  6. Enter c to continue following the nissetup script's explanation that the master server's list must include each slave server, and that the master server must be established in order for maps to be copied to the slave server.

  7. Enter the name of the master server for your domain.

  8. Indicate whether you want to use the -s security option.

    If you choose to the -s option, the ypbind process runs in a secure mode.

  9. Indicate whether you want to use the -S security option.

    If you choose to run the -S option, you must enter the names of up to four NIS servers.

    The nissetup script automatically places the host name of the server you are configuring first. Press Return when you are finished entering server names.

    Digital recommends that you use the -S option.

    If you enter the name of a host that is not listed in the slave server's /etc/hosts file, the nissetup script prompts you for its IP address. When you finish entering the list of servers, enter c to continue configuring NIS on your system.

  10. Indicate whether you want to allow ypset requests on your system.

    Digital recommends that you disallow all ypset requests. Press Return to accept the default and confirm your choice.

  11. Indicate whether you want your system to use all of the NIS databases served by the master server.

    Digital recommends that you use all of the NIS databases.

    If you choose to use all of the NIS databases (either enter y or accept the default), the nissetup script edits the /etc/svc.conf file to include the string yp for each database. It also edits the /etc/passwd and /etc/group files to include a plus sign followed by a colon (+:) at the end of each file. This enables your system to use NIS for each database listed. This symbol enables the file to be distributed by NIS. Continue with step 15.

    If you choose not to use all of the NIS databases, enter n, continue with the next step.

  12. Indicate whether you want to add +: to the end of the local /etc/passwd and /etc/group files.

    For your system to use the NIS-served passwd database, group database, or both, +: must be the last line in the file or files you want NIS to serve. This applies to the passwd and group databases only.

    Note

    The service order selection for the passwd and group databases is handled by the Security Integration Architecture (SIA). If BSD is selected for passwd and group information in the /etc/sia/matrix.conf file, the +: only is required for your system to search NIS.

  13. Indicate whether you want to use NIS to obtain information for all of the default databases.

    If you answer yes, nissetup edits the svc.conf file to include the string yp for each database. The nissetup script then skips the next question and continues at step 15.

  14. Indicate whether you want the nissetup script to invoke the svcsetup script. (Note, if you answered yes to step 13, skip this step.)

    If you answer yes, nissetup invokes the svcsetup script, which allows you to modify the database services selection file (the svc.conf file). See Section 7.3.4 for information on modifying the svc.conf file.

    If you answer no, nissetup continues with the next question. Note that you must edit the svc.conf file if you want your system to use NIS to obtain database information other than passwd and group information. See svcsetup(8) for information on editing the svc.conf file with svcsetup or manually.

  15. Indicate whether to start the NIS daemons automatically.

    If you answer yes, nissetup starts the daemons.

    If you answer no, use the following command to start the daemons manually after nissetup exits and returns you to the system prompt (#):

    /sbin/init.d/nis start


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.3.3    Configuring an NIS Client

To configure an NIS client, do the following:

  1. Invoke the nissetup script from the CDE Desktop or by entering the following command:

    /usr/sbin/nissetup

    A message appears reminding you that your network must be established before setting up NIS, and that in order to set up an NIS server you must have the Additional Networking Services subset installed.

  2. Enter c to continue.

  3. Press Return following the script's explanation of nissetup, and then press Return again after the script explains the three types of systems in an NIS domain.

  4. Enter and confirm your system's NIS domain name.

  5. Press Return to accept the default that you are configuring a client.

  6. Enter c to continue following the nissetup script's warning that at least one server must be configured for this domain.

  7. Indicate whether you want to use the -s security option.

    If you choose to the -s option, the ypbind process runs in a secure mode.

  8. Indicate whether you want to use the -S security option.

    If you choose to run the -S option, you must enter the names of up to four NIS servers.

    If you enter the name of a host that is not listed in the client's /etc/hosts file, the nissetup script prompts you for its IP address. After you finish entering the list of servers, enter c to continue configuring NIS on your system.

  9. Indicate whether you want to allow ypset requests on your system.

    Digital recommends that you disallow all ypset requests. Press Return to accept the default, and confirm your choice.

  10. Indicate whether you want your system to use all of the NIS databases served by the master server.

    Digital recommends that you use all of the NIS databases.

    If you choose to use all of the NIS databases (either enter y or accept the default), the nissetup script edits the /etc/svc.conf file to include the string yp for each database. It also edits the /etc/passwd and /etc/group files to include a plus sign followed by a colon (+:) at the end of each file. This enables your system to use NIS for each database listed. This symbol enables the file to be distributed by NIS. Continue with step 14.

    If you choose not to use all of the NIS databases, enter n and continue with the next step.

  11. Indicate whether you want to add +: to the end of the local /etc/passwd and /etc/group files.

    For your system to use the NIS served passwd database, group database, or both, +: must be the last line in the file or files you want served by NIS. This applies to the passwd and group databases only.

    Note

    The service order selection for the passwd and group databases is handled by the Security Integration Architecture (SIA). If BSD is selected for passwd and group information in the /etc/sia/matrix.conf file, only the +: is required for your system to search NIS.

  12. Indicate whether you want to use NIS to obtain information for all of the default databases.

    If you answer yes, nissetup edits the svc.conf file to include the string yp for each database. The nissetup script then skips the next question and continues at step 14.

    If you answer no, nissetup continues with the next question.

  13. Indicate whether you want the nissetup script to invoke the svcsetup script. (Note, if you answered yes to step 10, skip this step.)

    If you answer yes, nissetup invokes the svcsetup script, which allows you to modify the database services selection file (the svc.conf file). See Section 7.3.4 for information on modifying the svc.conf file.

    If you answer no, nissetup continues with the next question. Note that you must edit the svc.conf file if you want your system to use NIS to distribute database information other than passwd and group information. See svcsetup(8) for information on editing the svc.conf file with svcsetup or manually.

  14. Indicate whether to start the NIS daemons automatically.

    If you answer yes, nissetup starts the daemons.

    If you answer no, use the following command to start the daemon manually after nissetup exits and returns you to the system prompt (#):

    /sbin/init.d/nis start


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.3.4    Modifying the svc.conf File with svcsetup

If you choose not to use NIS for all of the default databases, the nissetup script provides the option of editing the /etc/svc.conf file with the svcsetup script. If you answer yes when nissetup asks if you want to run svcsetup, it invokes the svcsetup script. Use the following procedure to edit the /etc/svc.conf file:

  1. Press Return to choose the m option from the Configuration Menu.

  2. Enter the numbers from the Change Menu that correspond to the databases whose entries you want to modify.

  3. Enter the number that corresponds to the order in which you want to query the services on your system.

    If you choose the default (2), the local /etc files will be searched first for the requested information. If the information is not found locally, then an NIS server will be queried. This choice is valid for all of the databases that NIS serves.

    To have NIS serve hosts information if your system is also having hosts information served by BIND, choose either option 5 local,bind,yp or 6 bind,local,yp for the hosts database. Note that options 3 local,bind, 4 bind,local, 5, and 6 are valid for the hosts database only.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.3.5    Modifying or Removing an NIS Configuration

If you configure NIS and run the nissetup script, you can modify or remove the NIS configuration.

If you choose to modify the NIS configuration, the nissetup script proceeds as described in Section 7.3.1 to Section 7.3.3, resulting in a new configuration.

If you choose to remove the NIS configuration, the nissetup script prompts you to verify your choice, then removes the NIS information from the following files:


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4    Managing an NIS Server

This section describes how to perform the following NIS server tasks:


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.1    Adding an NIS Slave Server to a Domain

Adding a slave server to a domain enables the slave server to receive updated NIS maps from the master server and serve them to NIS clients in a domain.

To add an NIS slave server to a domain, do the following:

  1. Set up the system as a slave server. See Section 7.3.2 for information on setting up a slave server.

  2. Log in to the NIS master server as root.

  3. Change to the /var/yp directory by using the cd command.

  4. Undo the ypservers map and direct the output to a file by using the following command:

    makedbm -u domainname/ypservers > filename

  5. Edit the file and add the host name of the new server.

  6. Build a new ypservers map by using the makedbm command as follows:

    makedbm filename ypservers

    You can combine steps 4, 5, and 6 into one command line. See the example at the end of these steps.

  7. Move the ypservers.dir and ypservers.pag map files to the domain subdirectory.

  8. Distribute the updated ypservers map to the slave servers by using the yppush command.

  9. Edit the NIS master server's master hosts file and add an entry for the slave server, if it is not already in the hosts file. Then update the map by entering the make command. The make command also distributes the updated map.

See makedbm(8) for more information on building maps.

The following example (illustrating steps 3 through 9) shows how to add slave server host8 to domain market:

cd /var/yp
/var/yp/makedbm -u market/ypservers ; echo host8\ [1]
 |/var/yp/makedbm - tmpmap
mv tmpmap.dir market/ypservers.dir [2]
mv tmpmap.pag market/ypservers.pag
yppush ypservers [3]
vi /var/yp/src/hosts  [4]
.
.
.

make hosts  [5]

  1. Represents the combination of steps 4, 5, and 6 in the preceding procedure. The output from the makedbm command with the -u option is displayed and the new server name, host8, is echoed on standard output to add it to the file. Then, the output is piped back into the makedbm command to build a new map named tmpmap.

    Note

    You can type the first and second lines as one command even if the line wraps on your screen, or you can use the backslash escape character (\), as shown.

    [Return to example]

  2. Moves the tmpmap.dir and tmpmap.pag map files to the domain market subdirectory and renames them as ypservers map files. [Return to example]

  3. Distributes the updated map to the slave servers. [Return to example]

  4. Adds a new host to the hosts NIS map on the master server. [Return to example]

  5. Updates the map and distributes the updated map to the slave servers. [Return to example]

Section D.1 contains a sample script you can copy that performs the steps involved in adding a slave server to a domain. You will still have to set up the slave server and edit the master server's hosts file, adding a slave server entry, if necessary. The script does not do those steps.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.2    Removing an NIS Slave Server from the Domain

Removing a slave server from a domain means that the system will no longer receive updated NIS maps from the master server and serve them to NIS clients in a domain.

To remove an NIS slave server from the domain, do the following:

  1. Log in to the NIS slave server.

    If the system is going to be an NIS client, configure it as an NIS client by using nissetup. See Section 7.3.3 for more information.

    If the system will no longer use NIS, turn off the NIS configuration flag in the /etc/rc.config file by using the following command:

    /usr/sbin/rcmgr set NIS_CONF NO

  2. Log in to the NIS master server as root.

  3. Change to the /var/yp directory by using the cd command.

  4. Undo the ypservers map and direct the output to a file by using the following command:

    makedbm -u ypservers > filename

  5. Edit the file and remove the host name of the new server.

  6. Build a new map by using the makedbm command as follows:

    makedbm filename ypservers

    You can combine steps 4, 5, and 6 into one command line. See the following examples.

  7. Move the ypservers.dir and ypservers.pag map files to the domain subdirectory.

  8. Distribute the updated ypservers map to the slave servers by using the yppush command.

See makedbm(8) for more information on building maps.

The following example (illustrating steps 4 through 8) shows how to remove slave server host4 from domain market:

/var/yp/makedbm -u market/ypservers |\ [1]
 grep -v host4 | /var/yp/makedbm - tmpmap
mv tmpmap.dir market/ypservers.dir  [2]
mv tmpmap.pag market/ypservers.pag
yppush ypservers [3]

  1. Represents the combination of steps 4, 5, and 6 in the preceding procedure. The output from the makedbm command with the -u option is piped into grep with the -v option to display all lines except the one containing the slave server name (host4). Then, the output is piped back into the makedbm command to build a new map named tmpmap.

    Note

    You can type the first and second lines as one command even if the line wraps on your screen, or you can use the backslash escape character (\), as shown.

    [Return to example]

  2. Moves the tmpmap.pag and tmpmap.dir map files to the domain market subdirectory and renames them as ypservers map files. [Return to example]

  3. Distributes the updated map to the slave servers. [Return to example]

Section D.2 contains a sample script you can copy that performs the steps involved in removing a slave server from a domain. You will still have to reconfigure the slave server as an NIS client or as a system that does not use NIS. The script does not do that for you.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.3    Adding a New User to an NIS Domain

Adding a new user to an NIS domain includes the user in the passwd map and allows the user to participate in the NIS environment. A user has only one password on all systems that use NIS for their passwd map.

To add a user to an NIS domain, do the following:

  1. Log in to the NIS master server as root.

  2. Edit the NIS master server's master password file, /var/yp/src/passwd, and add an entry for the new user.

    The master passwd file is a readable ASCII file with a one-line entry for each valid user on the system. Here is a sample passwd file entry for a user named Jane Doe:

    doe:fnuTqqab.6yec:444:10:Jane Doe:/usr/staff/doe:/bin/csh


    See System Administration for a description of how to edit the passwd file to add a new user.

    Note

    The remote systems on the network recognize a user by the user identification (UID) number. Therefore, it is important that each user have the same UID number on each of the systems on the network.

  3. Change to the /var/yp directory by using the cd command.

  4. Update the passwd map by using the make command.

  5. Create a home directory for the new user on the user's system, using the same directory name that you specified in the master passwd file.

  6. Set up the new user's environment.

    You can define login environments for new users in several ways. For example, you can give new users a copy of the .login and .cshrc files if they use the C shell (/bin/csh), or the .profile file if they use the Bourne shell (/bin/sh). Copies of the default environment files are stored in the /usr/skel directory. See System Administration and csh(1) and sh(1) for further information about setting up a new user's environment.

    If the new user is a member of any groups at your site, add the user's login name to the master group and netgroup files on the NIS master server as necessary. See group(4), netgroup(4), and groups(1) for more information about user groups.

  7. Change ownership of the directory to the new user by using the chown command.

  8. Have the user set the NIS password by using the yppasswd command.

The following example (illustrating steps 2 through 4) shows how to add a new user to a domain:

vi /var/yp/src/passwd  [1]
.
.
.

cd /var/yp  [2]
make passwd  [3]

  1. Opens the /var/yp/src/passwd file for editing. [Return to example]

  2. Changes to the /var/yp directory. [Return to example]

  3. Updates the NIS passwd map and distributes the updated map to the slave servers. [Return to example]

You would then set up the new user's environment and have the user set the NIS password to complete the task.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.4    Updating an NIS Map

Updating an NIS map involves making changes to an NIS map's master file, updating the Makefile file (if the map is not listed), and building and distributing the new map. Entries for the following standard maps are included in the Makefile file:

The master files are located in /var/yp/src on the NIS master server.

To update an NIS map, do the following:

  1. Log in to the NIS master server as root.

  2. Change to the /var/yp directory by using the cd command.

  3. Modify the Makefile file, if no entry exists in the /var/yp/Makefile file for the map you want to update.

    See Section 7.4.7 for information on modifying the Makefile file.

  4. Change to the /var/yp/src directory by using the cd command.

  5. Edit the master file of the map you want to update and make your changes.

  6. Change to the /var/yp directory by using the cd command.

  7. Update and distribute the map by using the make command as follows:

    make map_name

The following example (illustrating steps 4 through 7) shows how to update the hosts map:

cd var/yp/src  [1]
vi hosts   [2]
.
.
.
cd /var/yp  [3]
make hosts  [4]

  1. Changes to the /var/yp/src directory. [Return to example]

  2. Opens the /var/yp/src/hosts file for editing. [Return to example]

  3. Changes to the /var/yp directory. [Return to example]

  4. Updates the map and distributes it to the slave servers. [Return to example]


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.5    Adding an NIS Map to a Domain

Adding an NIS map to a domain allows the database information to be distributed throughout an NIS domain. You can create and distribute maps for any information you want to distribute.

To add an NIS map to a domain, do the following:

  1. Log in to the NIS master server as root.

  2. Create a master file for your new map.

    A master file is an ASCII text file containing individual entries. Each entry has fields separated by spaces. Some of these fields are used to build a key to each entry. Review some of the master files in the /var/yp/src directory to better understand the structure of a master file.

  3. If you are using NIS to distribute NFS automount maps, create a file named auto.master in the /var/yp/src directory. If the file exists, add an entry for the NFS automount map you want to distribute.

    See Section 8.1.2 and Appendix C for more information on the auto.master map.

  4. Edit /var/yp/Makefile file to include the new map in the default set of maps.

    See Section 7.4.7 for information on modifying the Makefile file.

  5. Change to the /var/yp directory by using the cd command.

  6. Update the map by using the make command as follows:

    make map_name

The following example adds the phonelist map to a domain:

vi /var/yp/src/phonelist  [1]
.
.
.
vi /var/yp/Makefile  [2]
.
.
.
cd /var/yp  [3]
make phonelist  [4]

  1. Creates a phonelist master file on the master server. [Return to example]

  2. Modifies the Makefile file and adds phonelist entries. [Return to example]

  3. Changes directory. [Return to example]

  4. Updates the map and distributes the updated map to the slave servers. [Return to example]


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.6    Removing an NIS Map from a Domain

Removing an NIS map from a domain prevents the database information from being distributed throughout an NIS domain.

To remove an NIS map from a domain, do the following:

  1. Log in to the NIS master server as root.

  2. If you are using NIS to distribute NFS automount maps, delete the entry for the NFS map you no longer want distributed in the auto.master file in the /var/yp/src directory.

    See Section 8.1.2 and Appendix C for more information on the auto.master map.

  3. Edit /var/yp/Makefile file to remove the map from the default set of maps.

    See Section 7.4.7 for information on modifying the Makefile file.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.7    Modifying the /var/yp/Makefile File

Modifying the Makefile file means adding or deleting database entries in the /var/yp/Makefile file on the NIS master server. By adding a database entry to the Makefile file, you indicate that you want a map produced for the specific database when you use the make command. By deleting a database entry, you indicate that you do not want a map produced for the specific database.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.7.1    Adding an Entry

To add an entry to the Makefile file, do the following:

  1. Log in to the NIS master server as root.

  2. Edit the /var/yp/Makefile file and add the database name to the line beginning with all:. Next, add a line with the following format to the end of the file:

    database_name: database_name.time

    Finally, add an entry with the following format to the middle of the file:

    database_name.time: various_commands

    To simplify the creation of this entry, copy the auto.home.time: entry in the file and make the necessary database name changes.

  3. If you are using NIS to distribute NFS automount maps, uncomment any line that contains the auto.master string by deleting the comment character (#) that precedes it.

The following example shows the phonelist database added to the /var/yp/Makefile file. There is a tab character preceding the netgroup database name in the all: line.

all: passwd group hosts networks rpc services protocols \
        netgroup aliases phonelist

.
.
.
$(YPDBDIR)/$(DOM)/phonelist.time: $(DIR)/phonelist -@if [-f $(DIR)/phonelist ]; then \ $(SED) -e "/^#/d" -e s/#.*$$// $(DIR)/phonelist | \ $(MAKEDBM) - $(YPDBDIR)/$(DOM)/phonelist; \ $(TOUCH) $(YPDBDIR)/$(DOM)/phonelist.time; \ $(ECHO) "updated phonelist"; \ if [ ! $(NOPUSH) ]; then \ $(YPPUSH) phonelist; \ $(ECHO) "pushed phonelist"; \ else \ : ; \ fi \ else \ $(ECHO) "couldn't find $(DIR)/phonelist"; \ fi
.
.
.
phonelist: phonelist.time


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.7.2    Deleting an Entry

To delete an entry from the Makefile file, do the following:

  1. Log in to the NIS master server as root.

  2. Edit the /var/yp/Makefile file, delete the database name from the line beginning with all:, and delete the line beginning with the database name (database_name:).

    Instead of deleting the database line, you could comment out the line by adding a number sign (#) to the beginning of the line.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.7.3    Makefile Editing Guidelines

As you edit the /var/yp/Makefile file, remember the following:


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.4.8    Restricting Access to NIS Data

By default, the ypserv and ypxfrd daemons provide NIS information to anyone with network access to an NIS server that makes a reqest. However, you can restrict NIS database access to only those hosts in subnets you specify by completing the following steps:

  1. Log in to the NIS server as root.

  2. Create a /var/yp/securenets file.

  3. Edit the /var/yp/securenets file and add an entry for each subnet from which the NIS server is to accept NIS requests. The format of each file entry is as follows:

    subnet_mask subnet_ip_address

    For example:

    255.255.0.0  128.30.0.0   [1]
    255.255.255.0 128.211.10.0    [2]
    255.255.255.255 128.211.5.6   [3]


    1. Allows IP addresses that are within the subnet 128.30 range to access the NIS files. The network mask is 255.255.0.0 and the corresponding network address is 128.30.0.0. [Return to example]

    2. Allows IP addresses that are within the subnet 128.211.10 range to access the NIS files. [Return to example]

    3. Allows one host with the IP address 128.211.5.6 to access the NIS files. [Return to example]

  4. Save the file.

If the file does not exist or contains no entries, the server accepts any NIS request.

If the file exists and contains entries, the ypserv and ypxfrd daemons read the /var/yp/securenets file during initialization. When an NIS request is received, the requester's IP address is compared to the subnets in the /var/yp/securenets file. If it matches, the request is processed. If it does not match, the NIS request is rejected and the rejection is recorded in the NIS server's log file. For example:

ypxfrd: An attack by non-trusted host, 128.40.16.122

On the system making the NIS request, NIS commands such as ypcat terminate with no error message. If a user is trying to log in to a system, the login times out after many retries.

Note

If the /var/yp/securenets file is modified, the you must kill and restart ypserv and ypbind.

NIS slave servers can also use a /var/yp/securenets file to restrict IP addresses to which it serves. However, the NIS slave server's IP address must be in the authorization range of entries in the /var/yp/securenets file of the NIS master.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.5    Managing an NIS Client

This section describes how to perform the following NIS client management tasks:


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Section] [Next Chapter] [Index] [Help]


7.5.1    Changing an NIS Password

To change a user's password that is stored in the NIS passwd map, use the yppasswd command. If you receive an error message, ask the system administrator on the master server to verify that the rpc.yppasswdd daemon on the NIS master server is running.

If you try to change your password with the passwd command, you might receive the following error message:

Not in passwd file.

This message means your password is stored and distributed in NIS. You must change your password by using the yppasswd command.

To change the root password, use the passwd command. This password is local and not in the NIS file.

See yppasswd(8) and rpc.yppasswdd(8) for further information.


[Return to Library] [Contents] [Previous Chapter] [Previous Section] [Next Chapter] [Index] [Help]


7.5.2    Obtaining NIS Map Information

Obtaining NIS map information enables you to see the following information:

To obtain NIS map information, issue one of the commands listed in Table 7-1.

Table 7-1: NIS Map Information Commands

Command Action
ypcat Prints values from an NIS database
ypwhich Prints the name of the master server for an NIS map
ypmatch Prints the values of one or more keys from an NIS map

Use the -x option with any of the commands shown in Table 7-1 to list all the map nicknames.

See ypcat(1), ypwhich(1), and ypmatch(1) for more information about these commands.

The following command lists all available maps and their master servers:

ypwhich -m

The following command lists all values in the hosts map:

ypcat hosts

The following command lists all occurrences in the hosts map that have the key apple:

ypmatch apple hosts

The following command lists all occurrences in the hosts map that have the name jones associated with them. The name jones is not a key in this map.

ypcat hosts | grep jones
