Package javax.xml.registry.infomodel

This package describes the information model for the JAXR API.

See:
Description

Interface Summary

Association	A RegistryObject instance may be associated with zero or more RegistryObject instances.
AuditableEvent	AuditableEvent instances provide a long term record of events that effect a change of state in a RegistryObject.
Classification	The Classification interface is used to classify RegistryObject instances.
ClassificationScheme	A ClassificationScheme instance represents a taxonomy that may be used to classify or categorize RegistryObject instances.
Concept	The Concept interface is used to represent taxonomy elements and their structural relationship with each other in order to describe an internal taxonomy.
EmailAddress	Represents an email address.
ExtensibleObject	An ExtensibleObject is one that allows itself to be extended by utilizing dynamically added Slots that add arbitrary attributes to the object on a per instance basis.
ExternalIdentifier	ExternalIdentifier instances provide the additional identifier information to RegistryObjects such as DUNS number, Social Security Number, or an alias name of the organization.
ExternalLink	ExternalLink instances model a named URI to content that may reside outside the registry.
ExtrinsicObject	ExtrinsicObjects provide metadata that describes submitted content whose type is not intrinsically known to the registry and therefore must be described by means of additional attributes (e.g., mime type).
InternationalString	This interface represents a String that has been internationalized into several Locales.
Key	Represents a unique key that identifies a RegistryObject.
LocalizedString	This interface is used as a simple wrapper interface that associates a String with its Locale.
Organization	Organization instances provide information on organizations such as a Submitting Organization.
PersonName	Represents a person's name.
PostalAddress	PostalAddress is a simple re-usable entity class that defines attributes of a postal Address.
RegistryEntry	The RegistryEntry interface is a base interface for interfaces in the model that require additional metadata beyond what is provided by the RegistryObject interface.
RegistryObject	The RegistryObject class is an abstract base class used by most classes in the model.
RegistryPackage	RegistryPackage instances are RegistryEntries that group logically related RegistryEntries together.
Service	Service instances are RegistryObjects that provide information on services (for example, web services) offered by an Organization.
ServiceBinding	ServiceBinding instances are RegistryObjects that represent technical information on a specific way to access a specific interface offered by a Service instance.
Slot	Slot instances provide a dynamic way to add arbitrary attributes to RegistryObject instances.
SpecificationLink	A SpecificationLink provides the linkage between a ServiceBinding and one of its technical specifications that describes how to use the service using the ServiceBinding.
TelephoneNumber	A simple re-usable entity class that defines attributes of a telephone number.
URIValidator	Defines common behavior expected of any class that validates URIs.
User	User instances are RegistryObjects that are used to provide information about registered users within the registry.
Versionable	The Versionable interface defines the behavior common to classes that are capable of creating versions of their instances.

Package javax.xml.registry.infomodel Description

This package describes the information model for the JAXR API. It is based largely on the ebXML Registry Information Model with enhancements to support other registry specifications such as UDDI.

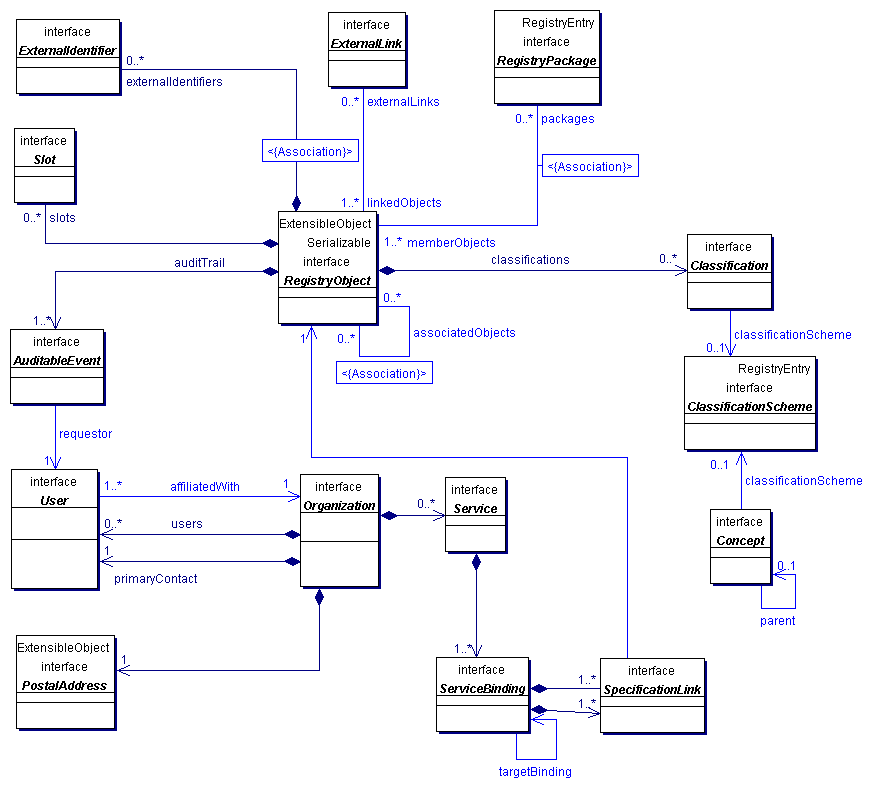

The class diagram in Figure 1 shows the public view of the information model.

Figure 1. Information Model Public View

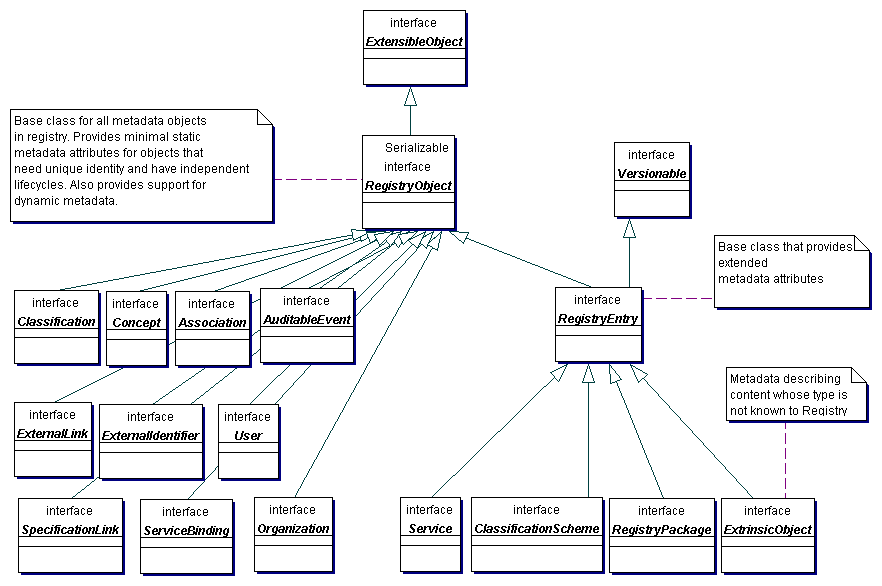

The class diagram in Figure 2 shows the inheritance view of the information model.

Figure 2. Information Model Detailed View
