SDPS-reconstruction of the "Mountain in Spain - 1" scene
:
Initial stereo images 1024 × 1024
Area of reconstruction 608 × 960
Epipolar lines' range: [32, 991]
Pixels' range: [352, 959] in the left image and [64, 671] in the right image
Range of
x
-parallaxes (disparities): [-40, 60]
Weight of occluded points: 100
Relative adaptation of grey level differences: [0.4, 1.6]
DPM smoothing by 7 × 7 median filtering
Pentagon
Left stereo image
Right stereo image

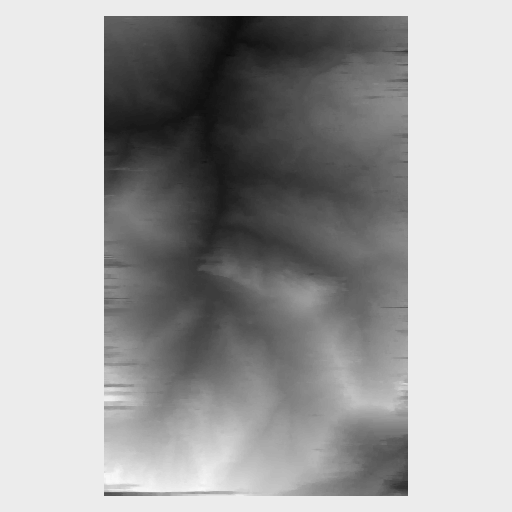

Range image (DPM)
Ortho image (DPM)
