Data Structures and Algorithms: Hard Problems

Data Structures and Algorithms

13 Hard or Intractable Problems

If a problem has an O(n^k) time algorithm (where k is a constant), then we class it as having polynomial time complexity and as being efficiently solvable.

If there is no known polynomial time algorithm, then the problem is classed as intractable.

The dividing line is not always obvious. Consider two apparently similar problems:

Euler's problem (often characterized as the Bridges of Königsberg - a popular 18th C puzzle)	asks whether there is a path through a graph which traverses each edge only once.
Hamilton's problem	asks whether there is a path through a graph which visits each vertex exactly once.

Euler's problem

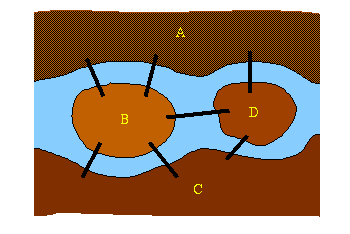

The 18th century German city of Königsberg was situated on the river Pregel. Within a park built on the banks of the river, there were two islands joined by seven bridges.

The puzzle asks whether it is possible to take a tour through the park, crossing each bridge only once.

An exhaustive search requires starting at every possible point and traversing all the possible paths from that point - an O(n!) problem. However Euler showed that an Eulerian path existed iff

it is possible to go from any vertex to any other by following the edges (the graph must be connected) and
every vertex must have an even number of edges connected to it, with at most two exceptions (which constitute the starting and ending points).

It is easy to see that these are necessary conditions: to complete the tour, one needs to enter and leave every point except the start and end points. The proof that these are sufficient conditions may be found in the literature . Thus we now have a O(n) problem to determine whether a path exists.

Transform the map into a graph in which
the nodes represent the "dry land" points
and the arcs represent the bridges.

We can now easily see that the Bridges of Königsberg does not have a solution.
A quick inspection shows that it does have a Hamiltonian path.

However there is no known efficient algorithm for determining whether a Hamiltonian path exists.

But if a path was found, then it can be verified to be a solution in polynomial time: we simply verify that each edge in the path is actually an edge (O(e) if the edges are stored in an adjacency matrix) and that each vertex is visited only once (O(n²) in the worst case).

Classes P and NP

Euler's problem lies in the class P: problems solvable in Polynomial time. Hamilton's problem is believed to lie in class NP (Non-deterministic Polynomial).

Note that I wrote "believed" in the previous sentence. No-one has succeeded in proving that efficient (ie polynomial time) algorithms don't exist yet!

What does NP mean?

At each step in the algorithm, you guess which possibility to try next. This is the non-deterministic part: it doesn't matter which possibility you try next. There is no information used from previous attempts (other than not trying something that you've already tried) to determine which alternative should be tried next. However, having made a guess, you can determine in polynomial time whether it is a solution or not.

Since nothing from previous trials helps you to determine which alternative should be tried next, you are forced to investigate all possibilities to find a solution. So the only systematic thing you can do is use some strategy for systematically working through all possibilities, eg setting out all permutations of the cities for the travelling salesman's tour.

Many other problems lie in class NP. Some examples follow.

Composite Numbers

Determining whether a number can be written as the product of two other numbers is the composite numbers problem. If a solution is found, it is simple to verify it, but no efficient method of finding the solution exists.

Assignment

Assignment of compatible room-mates: assume we have a number of students to be assigned to rooms in a college. They can be represented as the vertices on a graph with edges linking compatible pairs. If we have two per room, a class P algorithm exists, but if three are to be fitted in a room, we have a class NP problem.

Boolean satisfiability

Given an arbitrary boolean expression in n variables:

a₁ op a₂ op ... op a_n

where op are boolean operators, and, or, ..

Can we find an assignment of (true,false) to the a_i so that the expression is true? This problem is equivalent to the circuit-satisfiability problem which asks can we find a set of inputs which will produce a true at the output of a circuit composed of arbitrary logic gates.

A solution can only be found by trying all 2ⁿ possible assignments.

Map colouring

The three-colour map colouring problem asks if we can colour a map so that no adjoining countries have the same colour. Once a solution has been guessed, then it is readily proved.

[This problem is easily answered if there are only 2 colours - there must be no point at which an odd number of countries meet - or 4 colours - there is a proof that 4 colours suffice for any map.]

This problem has a graph equivalent: each vertex represents a country and an edge is drawn between two vertices if they share a common border.

Its solution has a more general application. If we are scheduling work in a factory: each vertex can represent a task to be performed - they are linked by an edge if they share a common resource, eg require a particular machine. A colouring of the vertices with 3 colours then provides a 3-shift schedule for the factory.

Many problems are reducible to others: map colouring can be reduced to graph colouring. A solution to a graph colouring problem is effectively a solution to the equivalent map colouring or scheduling problem. The map or graph-colouring problem may be reduced to the boolean satisfiability problem. To give an informal description of this process, assume the three colours are red, blue and green. Denote the partial solution, "A is red" by a_r so that we have a set of boolean variables:

a_r	A is red
a_b	A is blue
a_g	A is green
b_r	B is red
b_b	B is blue
b_g	B is green
c_r	C is red
...	...

Now a solution to the problem may be found by finding values for a_r, a_b, etc which make the expression true:

((a_r and not a_b and not a_g) and ( (b_b and (c_b and (d_g ....

Thus solving the map colouring problem is equivalent to finding an assignment to the variables which results in a true value for the expression - the boolean satisfiability problem.

There is a special class of problems in NP: the NP-complete problems. All the problems in NP are efficiently reducible to them. By efficiently, we mean in polynomial time, so the term polynomially reducible provides a more precise definition.

In 1971, Cook was able to prove that the boolean satisfiability problem was NP-complete. Proofs now exist showing that many problems in NP are efficiently reducible to the satisfiability problem. Thus we have a large class of problems which will are all related to each other: finding an efficient solution to one will result in an efficient solution for them all.

An efficient solution has so far eluded a very large number of researchers but there is also no proof that these problems cannot be solved in polynomial time, so the search continues.

Class NP problems are solvable by non-deterministic algorithms: these algorithms consist of deterministic steps alternating with non-deterministic steps in which a random choice (a guess) must be made. A deterministic algorithm must, given a possible solution,

have at least one set of guessing steps which lead to the acceptance of that solution, and
always reject an invalid solution.

We can also view this from the other aspect: that of trying to determine a solution. At each guessing stage, the algorithm randomly selects another element to add to the solution set: this is basically building up a "game" tree. Various techniques exist for pruning the tree - backtracking when an invalid solution is found and trying another branch, but this is where the exponential time complexity starts to enter!

Travelling salesman

It's possible to cast this problem - which is basically an optimality one, we're looking for the best tour - into a yes-no one also by simply asking:

Can we find a tour with a cost less than x?

By asking this question until we find a tour with a cost x for which the answer is provably no, we have found the optimal tour. This problem can also be proved to be in NP. (It is reducible to the Hamiltonian circuit problem.)

Various heuristics have been developed to find near optimal solutions with efficient algorithms.

One simple approach is the find the minimum spanning tree. One possible tour simple traverses the MST twice. So we can find a tour which is at most twice as long as the optimum tour in polynomial time. Various heuristics can now be applied to reduce this tour, eg by taking shortcuts.

An algorithm due to Christofides can be shown to produce a tour which is no more than 50% longer than the optimal tour.

It starts with the MST and singles out all cities which are linked to an odd number of cities.
These are linked in pairs by a variant of the procedure used to find compatible room-mates.

This can then be improved by taking shortcuts.

Another strategy which works well in practice is to divide the "map" into many small regions and to generate the optimum tour by exhaustive search within those small regions. A greedy algorithm can then be used to link the regions. While this algorithm will produce tours as little as 5% longer than the optimum tour in acceptable times, it is still not guaranteed to produce the optimal solution.

Key terms

Polynomial Time Complexity: Problems which have solutions with time complexity O(n^k) where k is a constant are said to have polynomial time complexity.
Class P: Set of problems which have solutions with polynomial time complexity.
Non-deterministic Polynomial (NP): A problem which can be solved by a series of guessing (non-deterministic) steps but whose solution can be verified as correct in polynomial time is said to lie in class NP.
Eulerian Path: Path which traverses each arc of a graph exactly once.
Hamiltonian Path: Path which passes through each node of a graph exactly once.
NP-Complete Problems: Set of problems which are all related to each other in the sense that if any one of them can be shown to be in class P, all the others are also in class P.

	It starts with the MST and singles out all cities which are linked to an odd number of cities. These are linked in pairs by a variant of the procedure used to find compatible room-mates.
	This can then be improved by taking shortcuts.
