Epipolar Geometry / Matching Fundamentals

CONTENTS

• Essential and Fundamental Matrices
  • The eight-point algorithm to compute matrices E and F
  • Locating the epipoles
  • Rectification of stereo images
  • 3-D Reconstruction
• Matching Fundamentals - Search Regions
  • Symmetric epipolar geometry of binocular stereo
  • Stereo matching constraints
• Appendix 1: Matrix Diagonalisation Using Eigenvectors
• Appendix 2: Singular Value Decomposition (SVD)

The epipolar geometry of a stereo system allows us to search for corresponding points only along corresponding image lines:

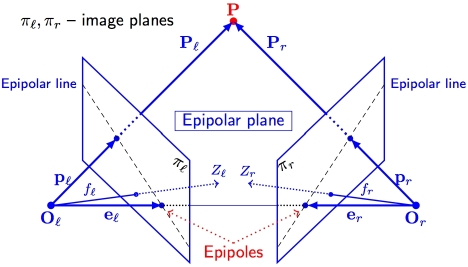

The two above pinhole cameras have the projection centres O_l and O_r, focal lengths f_l and f_r, and image planes π_l and π_r, respectively. Each camera identifies a 3D reference frame, the origin of which coincides with the projection centre, and the Z-axis with the optical axis. The vectors P_l = [X_l,Y_l,Z_l]^T and P_r = [X_r,Y_r,Z_r]^T represent the same 3D point, P, in the left and right camera reference frames, respectively. The vectors p_l = [x_l,y_l,z_l]^T and p_r = [x_r,y_r,z_r]^T express the projections of P onto the left and right image plane, respectively, in the corresponding reference frame. For all the image points, z_l = f_l or z_r = f_r, according to the image.

The reference frames of the left and right cameras are related via the extrinsic parameters defining a rigid transformation in 3D space defined by a translation vector T = (O_l − O_r) and a rotational matrix, R. Given a point P in 3D space, the relation between P_l and P_r. is as follows: P_r = R(P_l − T). The name epipolar geometry appears because the points e_l and e_r at which the line through the centres of projection intersects the corresponding image planes are called epipoles. Thus, the left epipole depicts the projection centre of the right camera and vice versa. If the line through the centres of projection is parallel to one of the image planes, the corresponding epipole is the point at infinity of that line.

The relation between a point P in 3D space and its projections p_l and p_l onto the 2D image planes is described by the vector-form equations of perspective projection: p_l = f_lP_l/Z_l and p_r = f_rP_r/Z_r.

The plane through the points P, O_l, and O_r is called epipolar plane. It intersects each image in a line, called epipolar line. Both the lines are called conjugated epipolar lines. Given a point p_l on the left image, the 3D point P can lie anywhere on the ray from O_l through p_l. Since this ray is depicted in the right image by the epipolar line through the corresponding point, p_r, the true match must lie on the epipolar line. The mapping between points in the left image and lines in the right image and vice versa is called the epipolar constraint. Since all rays include the projection centre, all the epipolar lines of one camera go through the camera's epipole. With the exception of the epipole, only one epipolar lines goes through any image point.

The epipolar constraint restricts the search for the match of a point in one image along the corresponding epipolar line in another image. Thus the search for correspondences is reduced to a 1D problem. Alternatively, false matches due to occlusions can be rejected by verifying whether or not a candidate match lies on the corresponding epipolar line.

Return to the local table of contents

Return to the global table of contents

Essential and Fundamental Matrices

To estimate the epipolar geometry, i.e. determine the mapping between points in one image and epipolar lines in the other image, the equation of the epipolar plane through a 3D point P is written as the coplanarity condition of the vectors P_l, T, and P_l−T, or (P_l−T)^T T×P_l = 0. Here, × denotes the vector (or outer, or cross) product of two vectors (see its definition in Wikipedia).

But P_l − T = R^TP_r due to the aforementioned relationship P_r = R(P_l − T) and the fact that the rotation matrix is orthonormal and thus its inversion is equivalent to transposition. Thus (R^TP_r) ^TT×P_l = 0, or P_r^TR T×P_l = 0.

The vector product T×P_l can be written as a multiplication by a rank-deficient matrix: T×P_l = SP_l where

.

The essential matrix establishes a natural link between the epipolar constraint and the extrinsic parameters of the stereo system. The equality P_r^TE P_l = 0 is easily rewritten for the image points: p_r^TE p_l = 0 to indicate that the essential matrix is the mapping between points and epipolar lines, i.e. the vector a_r = Ep_l specifies parameters of the epipolar line p_r^Ta_r=0 in the right image corresponding to the point p_l in the left image, as well as the vector a_l^T = p_r^TE specifies parameters of the epipolar line a_l^Tp_l=0 in the left image corresponding to the point p_r in the right image.

The mapping between points and epipolar lines can be obtained from corresponding points only, with no prior information on the stereo system. Let M_l and M_r be the matrices of the intrinsic parameters of the left and right camera, respectively, that produce points in pixel coordinates corresponding to points in camera coordinates:
where are points in homogeneous pixel coordinates. Therefore, , and the above equation with the essential matrix E yields . The matrix F is called fundamental matrix. Just as the essential matrix, the fundamental matrix has rank 2 (since E has rank 2 and M_l and M_r have full rank). The essential matrix encodes only information on the extrinsic parameters of the stereo system, whereas the fundamental matrix encodes information on both the extrinsic and intrinsic parameters. Both matrices enable full reconstruction of the epipolar geometry.

The most important difference between these matrices is that the fundamental matrix is defined for pixel coordinates and the essential matrix is defined for points in 3D camera coordinates. If the fundamental matrix is estimated from a number of point matches in pixel coordinates, the epipolar geometry can be reconstructed without information on the intrinsic or extrinsic parameters. Therefore, the epipolar constraint, as the mapping between points and corresponding epipolar lines, can be established with no prior knowledge of the stereo parameters.

Return to the local table of contents

Return to the global table of contents

The eight-point algorithm to compute matrices E and F

The simplest technique for computing the essential and fundamental matrices assumes that n; n ≥ 8, point correspondences between the images are known. Each correspondence produces a homogeneous linear equation like for the nine unknown entries of F. These equations form a homogeneous linear system, and if the n points do not form degenerate configurations, the nine entries of F are determined as the nontrivial solution of the system. Since the system is homogeneous, the solution is unique up to a signed scaling factor. Typically, n > 8, so that the system is overdetermined and its solution is obtained using singular value decomposition (SVD) related techniques (see Appendix 2). If A is the system's matrix and A = UDV^T, the solution is the column of V corresponding to the only null singular value of A. Because of noise, numerical errors and inaccurate correspondences, A is more likely to be full rank, and the solution is the column of V associated with the least singular value of A. Because the estimated fundamental matrix is almost certainly nonsingular, the singularity constraint can be enforced by adjusting the entries of the estimated matrix F_est as follows: compute the SVD of the estimated matrix, F_est = UDV^T; set the smallest singular value on the diagonal of the matrix D equal to zero; and compute the corrected estimate F′ = UD′V^T, where D′ is the corrected matrix D.

In order to avoid numerical instabilities, the coordinates of the corresponding points should be normalised so that the entries of A are of comparable size. Typical pixel coordinates can make A seriously ill-conditioned. A simple procedure to avoid numerical instability is to translate the two coordinates of each point to the centroid of each data set, and scale the norm of each point so that the average norm over the data set is 1. This can be accomplished by multiplying each left (right) point in homogeneous coordinates by two suitable 3×3 matrices, H_l and H_r. The eight-point algorithm is then used to estimate the matrix F′ = H_rFH_l, and F is obtained as H_r⁻¹F′H_l⁻¹.

The normalising matrices H_l and H_r are determined as follows: given a set of points in homogeneous coordinates p_i = [x_i,y_i,1]^T, the desired normalising 3×3 matrix H produces the points p_i′ = Hp_i such that p_i′ = [(x_i-m_x)/d, y_i-m_y)/d,1]^T, where , , and . In this case the average length of each component of p_i′ equals 1.

The matrices H_l and H_r depend on the corresponding data centroids, m_l = [m_l,x, m_l,y, 1]^T and m_r = [m_r,x, m_r,y, 1]^T, and average lengths, d_l and d_r, as follows:

Input: n pixel-to-pixel correspondences {(pl,i = [xl,i,yl,i,1]T, pr,i = [xr,i,yr,i,1]T ):  i = 1,2,...,n}; n≥8

Data normalisation: for i = 1,2,...,n do { p′l,i = Hlpl,i; p′r,i = Hrpr,i }

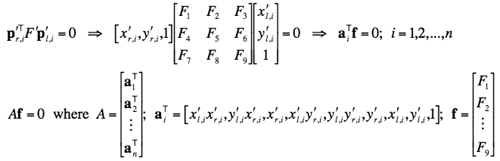

SVD A = UDVT of the n×9 matrix A for the (overdetermined) system of linear equations Af = 0:

The entries of F′ (up to an unknown, signed scale factor) are the components of the column of V

corresponding to the least singular value of A.

SVD F′ = UDVT of F′ in order to enforce the singularity constraint:

Set the smallest singular value in the diagonal of D equal to 0 to obtain the corrected matrix D′

and compute the corrected estimate F" = UD′VT of the fundamental matrix.

Renormalisation: The output estimate F = Hr−1F"Hl−1

Outpit: The fundamental matrix, F.

Return to the local table of contents

Return to the global table of contents

Locating the epipoles

Since the left epipole e_l lies on all the epipolar lines of the left image, the relationship p_r^TF e_l holds for every p_r. But F is not identically zero, so that this is possible if and only if Fe_l = 0. Because F has rank 2, it follows that the epipole, e_l, is the null space of F (the null space of a matrix A is the set of all solutions s to the matrix-vector equation As = 0; see Wikipedia or notes of Dr. John Mitchell from Rensselaer Polytechnic Institute, Troy, NY, USA). Similarly, e_r is the null space of F^T.

Accurate localisation of the epipoles is helpful for refining the location of corresponding epipolar lines, checking and simplifying the stereo geometry, and recovering 3D structure in the case of uncalibrated stereo. To determine the location of the epipoles, it is sufficient to find null spaces of F and F^T using, e.g., the SVD F = UDV^T and F^T = VDU^T (notice that there is exactly one singular value equal to 0 because the eight-point algorithm enforces the singularity constraint explicitly).

Return to the local table of contents

Return to the global table of contents

Rectification of stereo images

Given a pair of stereo images, rectification is defined as a transformation, or warping of each image such that pairs of conjugate epipolar lines become collinear and parallel to one of the image axes, usually the horizontal one. An example below shows an initial and the rectified stereo pair:

A stereo pair of images of the same scene
The rectified stereo pair

The rectification reduces generally 2D search for correspondence to a 1D search on scanlines having the same y-coordinate in both the images. The image transformation that makes conjugated epipolar lines for a given stereo pair of images collinear and parallel to the horizontal image axis can be computed using the known intrinsic parameters of each camera and the extrinsic parameters of the stereo system. The rectified images can be thought of as acquired by a new stereo rig, obtained by rotating the original cameras around their optical centres.

Without losing generality, one can assume that in both cameras (i) the origin of the image reference frame is the principal point (i.e. the trace of the optical axis), and (ii) the focal length is equal to f. The rectification algorithm consists in four steps:

• Rotate the left camera so that the epipole goes to infinity along the horizontal axis (i.e. the left image plane becomes parallel to the baseline of the system).
• Apply the same rotation to the right camera to recover the original geometry.
• Rotate the right camera by R.
• Adjust the scale in both camera reference frames.

The remaining steps are straightforward so that the rectification algorithm is as follows:

Input: the intrinsic and extrinsic parameters of a stereo system; a set of points in each camera to be rectified (which could be the whole images).

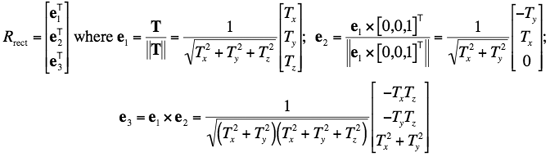

Build the above rotation matrix Rrect.

Set Rl = Rrect and Rr = RRrect.

for each left-camera point, pl = [x, y, f]T, compute the coordinates of the corresponding rectified point, pl′, as .

Repeat the previous step for the right camera using Rr and pr.

Output: the pair of transformations to be applied to the two cameras in order to rectify the two input point sets, as well as the rectified sets of points.

To obtain integer coordinates to rectify the whole image, the rectification algorithm should be implemented backwards, i.e. starting from the new image plane and applying the inverse transformations. The pixel values in the new image plane are computed by bilinear interpolation of the pixel values in the old image plane. The rectified image is not in general contained in the same region of the image plane as the original image. To keep all the points within images of the same size as the original, one may have to alter the focal lengths of the rectified cameras.

Return to the local table of contents

Return to the global table of contents

3-D Reconstruction

1. Both intrinsic and extrinsic parameters are known - then the reconstruction problem is unambiguously solved by triangulation.
2. Only the intrinsic parameters are known - then the reconstruction problem is solved and, simultaneously, the extrinsic parameters are estimated, but only up to an unknown scaling factor.
3. Neither the intrinsic, nor extrinsic parameters are known - then a reconstruction of the environment is still obtained, but up to an unknown, global projective transformation.

Reconstruction by triangulation is straightforward: given the known intrinsic and extrinsic parameters, compute the absolute 3-D coordinates of the points from their projections, p_l and p_r. The point P projected into the pair of corresponding points p_l and p_r, lies at the intersection of the two rays from O_l through p_l and O_r through p_r respectively. By assumption, the rays are known and the intersection can be computed. But since parameters and image locations are known only approximately, the two rays may not actually intersect in space. Their intersection is only estimated as the point of minimum distance from both rays.

Let ap_l, where a is a real number, be the ray through O_l (a=0) and p_l (A=1) in the left reference frame. Let T+bR^Tp_r, where b is a real number, be the ray through O_r (b=0) and p_r (b=1) expressed in the left reference frame. The vector w = p_l×R^T is orthogonal to both the rays. Let ap_l + cw, where c is a real number, be the line through ap_l (for some fixed a) and parallel to w. The endpoints, a₀p_l and T+b₀R^Tp_r, of the segment belonging to the latter line that joins the rays are determined by solving the linear system of equations, ap_l - b₀R^Tp_r +c(p_l × R^Tp_r) = T, for the unknown a₀, b₀, and c₀.

The determinant of the coefficients of this system of equations is not equal to zero and the system has a unique solution if and only if the two rays are not parallel. This reconstruction can be perfoirmed from rectified images directly, i.e. without going back to the coordinate frames of the original pair. In this case, one uses the simultaneous projection equations associated to a 3-D point in the two cameras.

If the geometry of a stereo system does not change with time, the intrinsic and extrinsic parameters of each camera can be estimated by calibration. Let T_l, R_l, and T_r, R_r, be the extrinsic parameters of the two cameras in the world reference frame. Then the extrinsic parameters of the stereo system, T and R, are: R = R_lR_r^T and T = T_l - R^TT_r. It is easily shown by taking into account that for a point P in the world reference frame the following relationships hold: P_r = R_rP + T_r and P_l = R_lP + T_l. The relation between P_r and P_l is given by P_r = R(P_l - T). In accord with the former two relationships, P = R_l^T (P_l - T_l) and P_r = R_r(R_l^T (P_l - T_l) - T_r), so that P_r = R_rR_l^T (P_l - (T_l - R_l R_r^TT_r)) (notice that the rotation matrices are orthogonal, so that their inversion is equivalent to the transposition).

Reconstruction up to a scale factor involves the essential matrix, so that by assumption at least n point correspondences, n>≥8, are established, the intrinsic parameters are known, and the location of the 3-D points are computed from their projections, p_l and p_r. Since the baseline of the stereo system is unknown, the true scale of the viewed scene cannot be recovered, and the reconstruction is unique only up to an unknown scaling factor. This factor can be determined if the distance between two points in the observed scene is known.

The first reconstruction step requires estimation of the essential matrix, E, which can only be known up to an arbitrary scaling factor. From the definition of the essential matrix, it follows that

If the entries of E are divided by the square root of the halved trace of E^TE, it is equivalent to normalising the length of the translation vector to unit:

Here "hat" indicates the normalised essential matrix and the normalised translation vector T/||T||. The components of the normalised translation vector are easily recovered from any row or column of the matrix . Then the rotation matrix is obtained from the normalised essential matrix and translation vector using simple algebraic computations.

Reconstruction up to a projective transformation is performed in the absence of any information on the intrinsic and extrinsic parameters. It is assumed that only n point correspondences; n≥8, and therefore the location of the epipoles are given in order to compute the location of the 3-D points from their projections, p_l and p_r.

Return to the local table of contents

Return to the global table of contents

Matching Fundamentals - Search Regions

Computational binocular stereo reconstructs 3-D coordinates of visible points from 2-D coordinates of the corresponding image points. Image difference, or disparity, in a stereo pair is the main carrier of 3-D information. Positional differences of the images of individual 3-D points in the left and right stereo images are measured by point-to-point or region-to-region matching. Due to different views of stereo cameras, there are horizontal and vertical disparities of the corresponding points (see e.g. H. A. Mallot: Stereopsis, Handbook of Computer Vision and Applications, vol.2, Academic Press, 1999, pp. 485 - 505).

Horizontal, or x-disparity is the difference between the horizontal coordinates of the corresponding points, whereas vertical, or y-disparity is the like difference between the vertical coordinates. The baseline of a stereo system is usually horizontal, so that vertical disparities are small. With a canonical geometry of a stereo pair, e.g. with an epopolar stereopair, the vertical disparity is absent.

A disparity map is a continuous 1-1 vector-valued function d(x,y) = [d_x,y, δ_x,y] that maps the coordinates (x,y) of binocularly visible points in one image to the coordinates (x + d_x,y, y + δ_x,y) of the corresponding points in the other image of a stereo pair. Its components are the horizontal, d, and vertical, δ, disparities, respectively. In other words, the disparity map relates the corresponding signals in both the images: g_{1: x,y} ↔ g_{2: x − dx,y, y − δx,y}. The mapping is undefined for image regions with no stereo correspondence, e.g. for partial occlusions due to depth discontinuities.

Search region depends on the expected range of x- and, if exist, y-disparities. Let [d_min, d_max] and [δ_min, δ_max] be the range of x- and y-disparities, respectively. Let (x, y) denote a pixel position in the left image, g₁. Then the search region in the right image, g₂, is {(x′,y′): x − d_max ≤ x′ ≤ x − d_min; y − δ_max ≤ y′ ≤ y − δ_min}.

Each binocularly visible 3-D area is represented by (visually) similar corresponding regions in the images of a stereo pair, and stereo correspondences are searched for by measuring similarity or dissimilarity between the image regions. Human vision find these similarities easily and at least reliably, and this easiness hides the principal ill-posedness of the binocular stereo, namely, that there always exist a multiplicity of optical 3-D surfaces giving just the same stereo pair. Figure 1 below exemplifies a continuous digital epipolar profile through the nodes in an epipolar (X,Z)-plane that represent possible correspondences between the points in digital images of a stereo pair with integer x-coordinates:

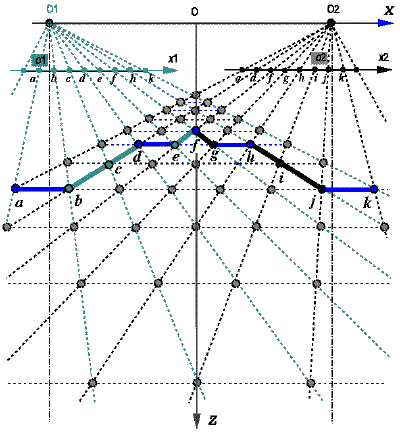

Figure 1: Digital profile in an epipolar plane.

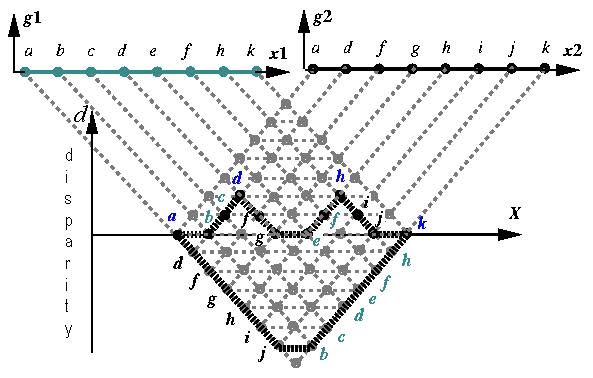

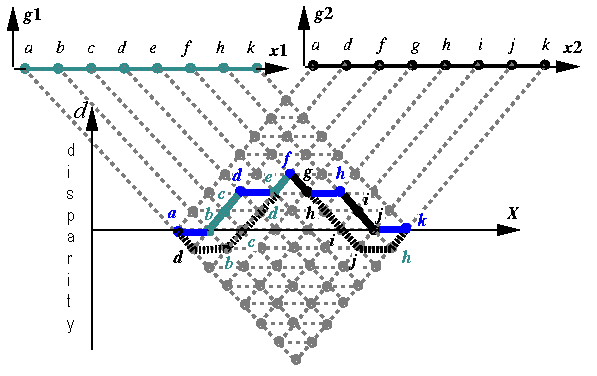

Figure 2: Epipolar profiles in (x,d) coordinates giving the same image signals.

Because the stereo problem is ill-posed, it is impossible to reconstruct precisely the real 3-D scene from a single stereo pair. Stereo matching pursues a more limited and thus more practical goal of bringing the reconstructed surfaces close enough to those perceived visually or restored by conventional photogrammetric techniques from the same stereo pair. Due to a multiplicity of visually observed 3-D scenes, there is only a very general prior knowledge about the optical 3-D surfaces to be found, e.g. specifications of allowable smoothness, curvature, discontinuities, and so forth.

Return to the local table of contents

Return to the global table of contents

Symmetric epipolar geometry of binocular stereo

Under symmetric epipolar geometry, a disparity map represents a set of epipolar profiles, points of each profile having the same y-coordinate. To reconstruct a profile, only the signals along the conjugate scan-lines (with the same y-coordinate in both images of a canonical stereo pair) have to be matched. Both the scan-lines represent the intersection of the image plane by an epipolar plane. The latter contains the stereo base-line which is parallel to the image plane.

Let pixels along the conjugate scan-lines in the images have integer x-coordinates and let the scan-lines themselves have integer y-coordinates with unit steps. The disparity map contains in this case only the x-disparities of the corresponding pixels. Figure 1 above shows a cross-section of a digital surface by an epipolar plane. Lines o₁x₁ and o₂x₂ represent the corresponding x-lines in the images. The correspondence between the signals in the profile points and in the image pixels is given by the symbolic labels from "a" to "k" Notice that all the profiles in Figure 2 above give just the same labels in the images provided that the signals for these profiles have the shown labels. Let [X,y,Z]^T be a vector of symmetric 3-D coordinates of a binocularly visible point. Here, y = y₁ = y₂ denotes the y-coordinate of the epipolar lines that indicates an epipolar plane containing the point and [X,Z]^T are Cartesian 2-D coordinates of the point in this plane. The spatial X-axis coincides with the stereo baseline linking the optical centres O₁ and O₂ of the cameras and is the same for all the planes. The Z-axis is orthogonal to X-axis in the epipolar plane with the index y. The origin O of the symmetric (X,Z)-coordinates is midway between the optical centres (rather than coincides with the centre O₁ as in the conventional asymmetric canonical geometry). If spatial positions of the origin O and of the epipolar plane with the index y are known, the symmetric coordinates [X,y,Z]^T are easily converted into any given Cartesian 3-D coordinate system.

Let pixels [x₁,y]^T and [x₂,y]^T in the images correspond to a 3-D point [X,y,Z]^T. Then the x-disparity, or x-parallax d = x₁ − x₂ is inversely proportional to the depth (distance,or height) Z of the point [X,y,Z]^T from the baseline OX: d = bf/Z where b denotes the baseline length and f is the focal length of the cameras.

Each digital profile in the epipolar plane y is a chain of the isolated 3-D points [X,y,Z]^T that correspond to the pixels [x₁,y]^T and [x₂,y]^T. If the 3-D points [X,y,Z]^T that relate to all the possible stereo correspondences are projected onto the image plane through the "cyclopean" coordinate origin O, they form an auxiliary "cyclopean" image which lattice has x-steps of 0.5 and y-steps of 1. Symmetric stereo mappings in Figure 2 are obtained by replacing the coordinates X and Z of digital profiles in the epipolar plane y with the corresponding (x)-coordinate and x-disparity in the cyclopean lattice, respectively. If the pixels [x₁,y]^T and [x₁,y]^T in a stereo pair correspond to a 3-D point with the planar cyclopean coordinates [x,y]^T, then the following simple relationships hold:

Return to the local table of contents

Return to the global table of contents

Stereo matching constraints

Stereo matching is governed by general constraints reflecting intrinsic properties of stereo viewing and 3-D scenes observed:

• Epipolar constraint. Given the canonical geometry of stereo images in terms of the conjugate pairs of epipolar scan-lines, the search for stereo correspondences is reduced to an 1-D search along the lines (as the matching points lie along them). Typically, an arbitrary stereo pair of a 3D scene is rectified, i.e. transformed to a canonical stereo geometry, by recovering the epipolar geometry so that the conjugate epipolar lines form parallel scanlines in the rectified images. This constraint considerably reduces the search region and thus the computational complexity of stereo matching and excludes false matches between points on different epipolar lines.
• Uniqueness constraint. Every 3-D point to be reconstructed is observed either binocularly, or only monocularly so that every pixel in one stereo image has either exactly one corresponding pixel in the other image, or no correspondence at all (in the latter case it depicts a partial occlusion). This constraint may not hold if the scene contains transparent or semi-transparent surfaces.
• Ordering constraint. If an epipolar profile is continuous, then its points and the corresponding points in the conjugate epipolar lines in both stereo images lie in the same order (see Figures 1 and 2). This constraint does not hold for 3-D scenes with multiple disjoint surfaces:
• Disparity range. A range of depth values, i.e. a range of possible disparities, d_min ≤ d ≤ d_max, is typically known for every 3-D scene depicted in a stereo pair. This constraint reduces the search region and excludes false matches between points outside the range.
• Continuity constraint. Observed surfaces are assumed to be smooth in most cases, i.e. small local changes of disparities over the scene except for object boundaries.

To simplify stereo matching, some additional assumptions are sometimes added to the above-mentioned restrictions, such as

• Equal corresponding signals. Under the assumption that observed 3-D surfaces have Lambertian reflection (i.e. transmit outcoming light equally in all directions), image signals (grey levels or colours) in corresponding points are exactly the same. This constraint dominates in the current computer vision works on stereo reconstruction to justify simple matching scores such as absolute or squared signal differences. But it does not hold in most practical cases because natural surfaces are rarely Lambertian.
• Frontal parallel surfaces. Area-based correlation matching implicitly or explicitly assumes that 3-D surfaces observed by a stereo system with canonical geometry are frontal and parallel to the image plane, i.e. disparities are constant for image regions depicting each such surface. This assumption obviously does not hold for the surfaces with slopes and creases.
• Similarity of features. Feature-based matching assumes that corresponding features such as edges, corners, contrast local areas, and so forth, and groups of such features are similar and mutually consistent in both images to within limited geometric deviations due to stereo viewing.

  Return to the local table of contents

  Return to the global table of contents

  Appendix 1: Matrix Diagonalisation Using Eigenvectors

  Eigenvalues and Eigenvectors

  Eigenvectors and eigenvalues of a matrix A are solutions of the matrix-vector equation Ae = λe, or (A−λI)e = 0 where I is the n×n identity matrix with the components I_ij = 1 if i = j and 0 otherwise. The latter equation suggests that the determinant of the matrix A−λI is equal to zero so that the eigenvalues are the solutions of the corresponding algebraic equation |A−λI| = 0.

  If A is real-valued and symmetric n×n matrix, A_ij = A_ji, it has N linearly independent (or mutually orthogonal) eigenvectors e₁, e₂, …, e_n. Typically, the eigenvectors are normalised so that their dot product e_i•e_j = 1 if i=j and 0 otherwise. Such eigenvectors are called orthonormal.

  Each eigenvector e_n has its own eigenvalue λ_n such that Ae_i = λ_ie_i. For example, let A be an arbitrary 2×2 symmetric real matrix with the components a, b, c:
  .
  Then its eigenvalues are the two solutions of the above quadratic equation:
  .
  For example, if a = c = 1 and b = 0 (the 2×2 identity matrix), then both the eigenvalues are equal to 1:
  .
  Actually, in this case the matrix equations Ae = λe themselves do not constrain the eigenvectors (they give only the identities e_j,i = e_j,i for i,j = 1, 2), so that only the constraints due to their orthonormality hold. In this case there exist infinitely many possible pairs of eigenvectors of the following form: e₁ = [cos θ sin θ]^T and e₂ = [−sin θ cos θ]^T where θ is an arbitrary angle, e.g. θ = 0 for the above pair e₁ = [1 0]^T and e₂ = [0 1]^T.

  If a = c = 0 and b = 1, then λ₁ = 1 and λ₁ = −1. The corresponding eigenvectors are obtained as follows:
  .
  Two more examples of computing eigenvalues and eigenvectors for particular 3×3 symmetric real matrices:
  ,
  and
  .

  Additional information about eigenvalues and eigenvectors can be found in:

  • Eigenvalue by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)
  • Eigenvector by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)
  • Eigenvalues and Eigenvectors of a Matrix by Dr. T. Lepikult (Tallin Technical University, Estonia)
  • PCA Principal Component Analysiis and Dataset Transformation by R. B. Fisher (UK)

  Eigendecomposition

  Matrix diagonalisation (called also eigendecomposition) is defined for a square n×n matrix A with N orthogonal eigenvectors such as a symmetric real one. Let E =[e₁ e₂ … e_n] be the n×n matrix with the orthonormal eigenvectors of A as the columns, i.e. E_ij = e_j,i. Then AE = [λ₁e₁ λ₂e₁ … λ_ne_n] is the matrix having as the columns the eigenvectors factored by their eigenvalues, i.e. the matrix with the components (AE)_ij = λ_je_j,i; i,j = 1, …, N, where e_j,i is the i-th component of the j-th eigenvector.

  In the transpose, E^T, the same eigenvectors form the rows. Therefore, E^TE = I, so that the matrix E is orthogonal, that is, its transpose, E^T, is the (left) inverse, E⁻¹.

  Hence E^TAE = Λ where Λ is the n×n diagonal matrix Λ = diag{λ₁, λ₂, …, λ_N} with the components &Lambda_ij = λ_i if i=j and 0 otherwise. Because every real symmetric matrix A is diagonalised by the transformation E^TAE = Λ, it is decomposed into a product of the orthogonal and diagonal matrices as follows: A = EΛE^T.

  In particular,
  .

  Additional information about eigendecomposition can be found in:

  • Eigen Decomposition by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)

  Appendix 2: Singular Value Decomposition (SVD)

  SVD is defined for a generic, rectangular matrix as follows: Any m×n matrix A can be written as the product of three matrices: A = UDV^T. The columns of the m×m matrix U are mutually orthogonal unit vectors, as the columns of the n×n matrix V. The m×n matrix D is diagonal; its diagonal elements, σ_i, called singular values are such that σ₁≥σ₂≥ … ≥σ_N≥0. The matrices U and V are not unique, but the singular values are fully determined by the matrix A.

  The SVD has the following properties:

  1. A square matrix A is nonsingular if and only if all its singular values are different from zero; the values σ_i show also how close the matrix is to be singular: the ratio C=σ₁/σ_n, called condition number, measures the degree of singularity of A. If 1/C is comparable with the arithmetic precision of a computer, the matrix A is ill-conditioned and for all practical purposes should be considered singular.
  2. If A is a rectangular matrix, the number of non-zero singular values σ_i equals the rank of A. Given a fixed tolerance, ε, being typically of order 10⁻⁶, the number of singular values greater than ε equals the effective rank of A.
  3. If A is a square, nonsingular matrix, its inverse can be written as A⁻¹ = VD⁻¹U^T.
     Be A singular or not, the pseudoinverse of A, A⁺, is A⁺ = VD₀⁻¹U^T, with D₀⁻¹ equal to D⁻¹ for all nonzero singular values and zero otherwise. If A is nonsingular, then D₀⁻¹ = D⁻¹ and A⁺ = A⁻¹.
  4. The columns of U corresponding to the nonzero singular values span the range of A; the columns of V corresponding to the zero singular value span the null space of A (see e.g. reference materials on null space in Wikipedia or lecture notes on matrices prepared by Dr. T. Lepikult, Tallin Technical University, Estonia).
  5. The columns of U are eigenvectors of AA^T. The columns of V are eigenvectors of A^TA. The squares of the nonzero singular values are the nonzero eigenvalues of both the n×n matrix A^TA and m×m matrix AA^T. Moreover, Av_i = σ_iu_i and A^Tu_i = σ_iv_i, where u_i and v_i are the columns of U and V corresponding to σ_i.
  6. The Frobenius norm of a matrix A is the sum of the squares of the entries a_ij of A, or . It follows from the SVD A = UDV^T that .

  An example of the SVD of the symmetric singular square 3×3 matrix being used earlier in the eigendecomposition is as follows:
  .
  The next example presents the SVD of a simple 3×2 rectangular matrix:
  .

  Note that there is another definition of SVD with the m×n matrix U and n×n matrices D and V which is typically used in computations (see e.g. W. H. Press, B. P. Flannery, S. A. Teukolsky, and W. T. Vetterling, Numerical Recipes in FORTRAN: The Art of Scientific Computing, Cambridge University Press, UK, 2nd ed., 1992: Section 2.6 "Singular Value Decomposition", pp. 51-63) because of a smaller memory space for the matrices: mn + 2N² rather that m² + mn + N² for the initial definition as typically N << m. The latter SVD definition is used e.g. in the C-subroutine svd() being a very straighforward translation into C of the Fortran program developed in the Argonne National Laboratory, USA, in 1983.

  Additional information about SVD can be found in:

  • Introduction to Singular Value Decomposition by Todd Will (University of Wisconsin - La Crosse, USA)
  • Singular Value (in Linear Algebra) by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)
  • Singular Value Decomposition by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)

  Least squares and pseudoinverse

  Let an over-determined system of m linear equations, Ax = b, have to be solved for an unknown N-dimensional vector x. The m×n matrix A contains the coefficients of the equations, and the m-dimensional vector b contains the data. If not all the components of b are null, the optimal in the least square sense and the shortest-length solution x^∗ of the system is given by x^∗ = (A^TA)⁺ A^Tb. The derivation is as follows:

  .

  If the inverse of (A^TA) exists, then the matrix A⁺ = (A^TA)⁻¹ A^T is the pseudoinverse, or Moore-Penrose inverse. If there are more equations than unknowns, the pseudoinverse is more likely to coinside with the inverse of A^TA, but it is better to compute the pseudoinverse of A^TA through SVD to account for the condition number of this matrix.

  While only a square full-rank matrix A has the conventional inverse A⁻¹, the pseudoinverse A⁺ exists for any m × n matrix; m > n. Generally, SVD (singular value decomposition) is the most effective way of getting the pseudoinverse: if A = UDV^T where the m×m matrix U and n×n matrix V are orthogonal and the m×n matrix D is diagonal with real, non-negative singular values σ₁≥σ₂≥ … ≥σ_N≥0, then A⁺ = V(D^TD)⁻¹ D^TU^T.

  This and additional information about the pseudoinverse matrix can be found in:

  • Moore-Penrose Matrix Inverse by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)
  • Normal Equation by Eric W. Weisstein (from MathWorld - A Wolfram Web Resource; Wolfram Research)
  • Pseudoinverse by R. K. Bock (CERN, Switzerland, 1998)
  • Pseudoinverse Matrix and Optimum Solution by Dr. T. Lepikult (Tallin Technical University, Estonia)

  Homogeneous Systems

  Let one have to solve a homogeneous system of m linear equations in N unknowns, Ax = 0 with m≥n−1 and rank(A)=N−1. A nontrivial solution unique up to a scale factor is easily found through SVD: this solution is proportional to the eigenvector corresponding to the only zero eigenvalue of A^TA (all other eigenvalues being strictly positive because the rank of A is equal to N−1). This is proved as follows. Since the solution may have an arbitrary norm, a solution of unit norm in the least square sense has to minimise the squared norm ||Ax||² = (Ax)^TAx = x^TA^T Ax, subject to the constraint x^Tx = 1. This is equivalent to minimise the Lagrangian L(x) = x^TA^T Ax − λ(x^Tx − 1). Equating to zero the derivative of the Lagrangian with respect to x gives A^TAx − λx = 0, so that λ is an eigenvalue of the matrix A^TA, and the solution, x = e_λ, is the corresponding eigenvector. The solution makes the Lagrangian L(e_λ) = λ; therefore, the minimum is reached at λ = 0, the least eigenvalue of A^TA.

  According to the properties of SVD, this solution could have been equivalently established as the column of V corresponding to the only null singular value of A (the kernel of A). This is why one need not distinguish between these two seemingly different solutions of the same problem.

  Matrix Estimates with Constraints

  Let entries of a matrix, A, to be estimated satisfy some algebraic constraints (e.g., A is an orthogonal or the fundamental matrix). Due to errors introduced by noise and numerical computations, the estimated matrix, say A_est, may not satisfy the given constraints. This may cause serious problems if subsequent algorithms assume that A_est satisfies exactly the constraints.

  SVD allows us to find the closest matrix to A_est, in the sense of the Frobenius norm, which satisfies the constraints exactly. The SVD of the estimated matrix, A_est = UDV^T, is computed, and the diagonal matrix D is replaced with D′ obtained by changing the singular values of D to those expected when the constraints are satisfied exactly (if A_est is a good numerical estimate, its singular values should not be too far from the expected ones). Then, the entries of the new estimated matrix, A = UD′V^T satisfy the desired constraints by construction.
