Prototyping Resources

Original article by Alyssa Ong. Edited, J. Warren, Jan 2016

We will go through the various tools that will help you through the prototyping tasks in Assignment 3. These tools act as a guideline - you need not follow it exactly, but it is what we recommend you use as best practice for your assignment.

Digital Wireframing

You will have created paper wireframes in your previous assignment - this is an example of low fidelity wireframing. Digital wireframing is considered to be of higher fidelity, which will help you further solidify the form and function of your website in the design process. Here are a list of some tools you can use:

1. Pencil Project (recommended!)

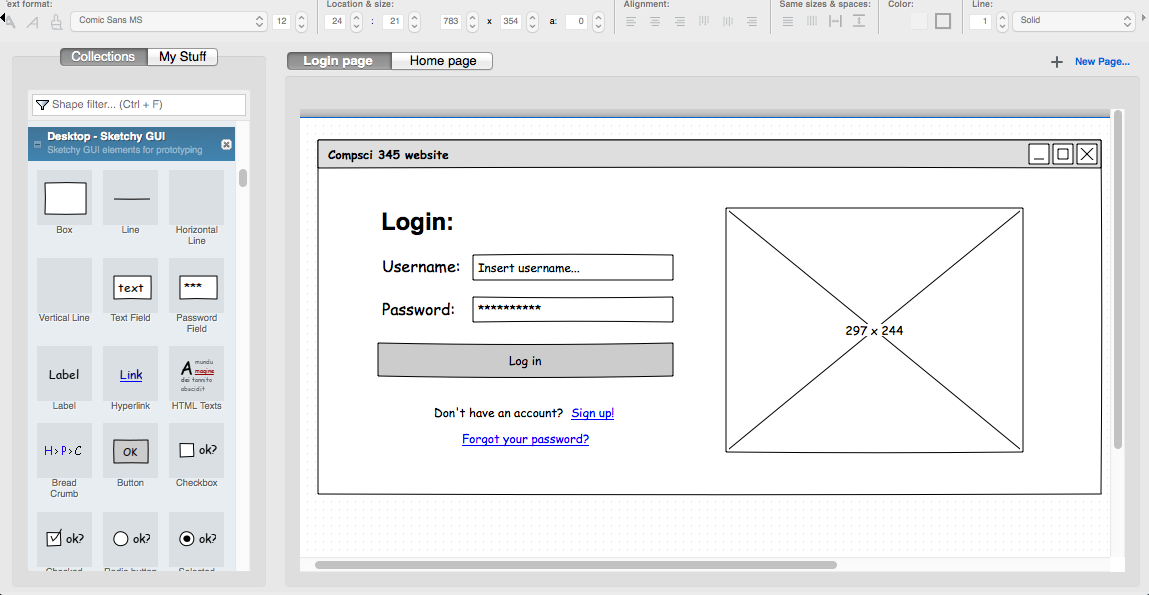

Pencil Project is an open source wireframing tool that allows you to create wireframes for desktop and mobile apps. It's completely free to use - download it here.

In the left pane there are collections of stencils you can use for web and mobile wireframing. There are also stencils for you to create diagrams. You could also use these to annotate your wireframe with notes. The top pane allows you to customize the stencils you insert.

Linking pages

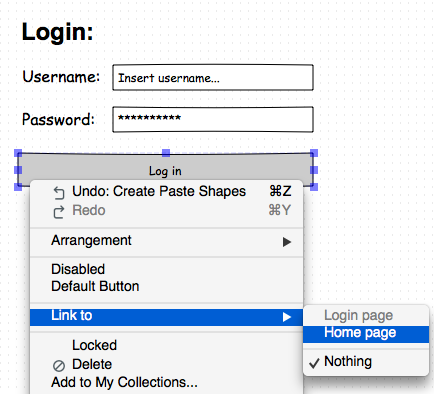

Pencil allows you to link buttons to other pages to show the interaction and flow in your website. Right click the button you inserted into the canvas, then click on Link to. You can then choose which page the user will be navigated to when clicking the button.

However, you'll only be able to interact with the wireframes once you've exported it as a html page. To do this, go to Document > Export Document... Select the output to be Single web page, then hit continue.

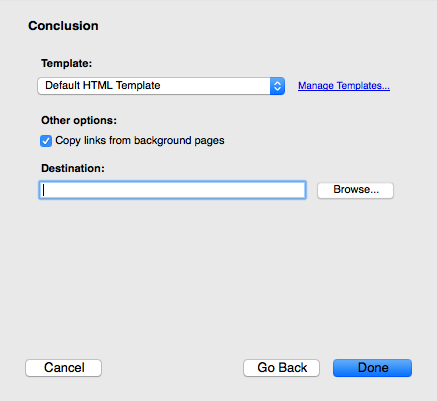

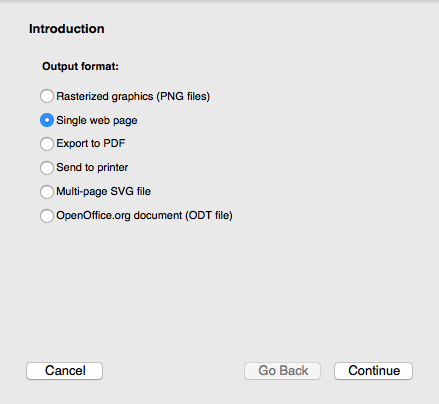

Select which pages you wish to export, then continue. Click on Browse... and choose which folder you want the html page to be saved in, and make sure "Copy links from background pages" is ticked. Hit done.

Now, browse to the folder you saved it in. There should be a newly created html page. If you open the html page in your browser, you should see the wireframes you made all in one page. Try clicking on the buttons in your wireframes and it should navigate to the different webpages like you specified earlier.

Installing extensions

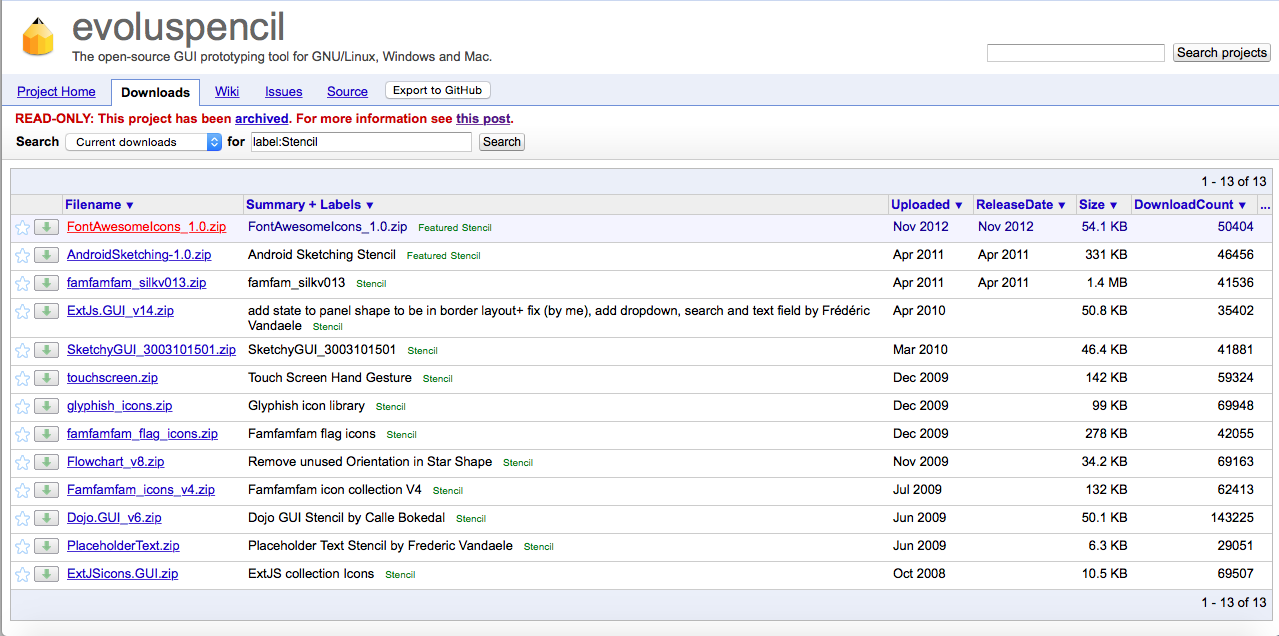

Pencil also allows you to install additional collections and additional export templates. First of all, simply download the zip file of the extension you'd like. Let's use the Font Awesome collection as an example.

If you want to install a collection, go to Tools > Install new collection... in Pencil. If you want to install an export template, then go to Tools > Manage Export Template... in Pencil.

Select the zip file you just downloaded, and Pencil should automatically add in the collection/template, like this:

Creating your own collections

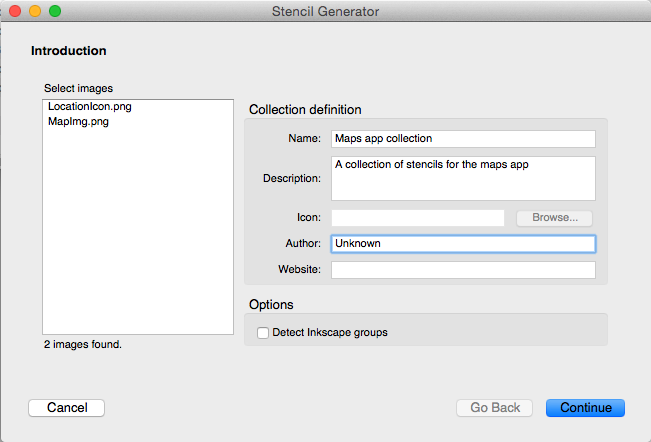

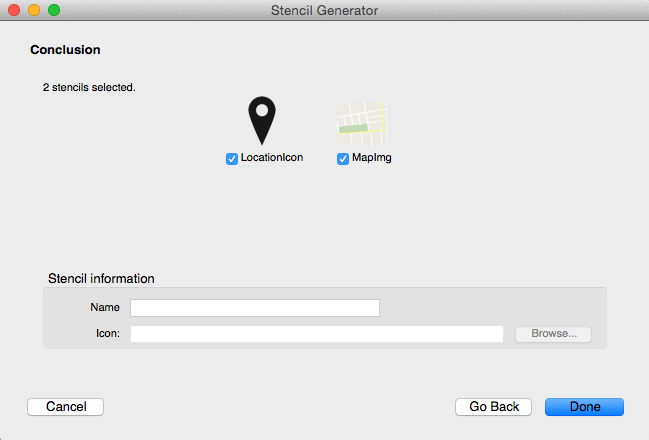

What if they don't provide the stencil you're looking for? No worries - you can add your own custom stencils in Pencil! Pencil can take an image file and turn it into a stencil that you can use in your wireframes. Let's say I'm making wireframes for a map app, and I wanted to add some stencils, e.g. a map and a location icon. Go to Tools > Developer Tools > Stencil Generator... Drag your image file(s) into the listbox, and enter a name, short description and author for your collection. You can remove the website if you wish. Hit continue.

Make sure all the images are checked, then hit done.

Choose a location to save the zip file - this is the installation file for the collection of stencils you just made. Now, go to Tools > Install new collection... and select the zip file that was just generated. Your custom collection should now be added to the pane on the left (collections are ordered alphabetically), and you can now use the stencils you just uploaded.

2. Mockingbird

Mockingbird is a HTML5 app for creating wireframes, meaning that everything is done in your browser and no installation is needed. Take me to Mockingbird. You can only have one project at a time with the free version, but otherwise it is a neat wireframing tool with no restrictions on the number of stencils and pages you can create in that project.

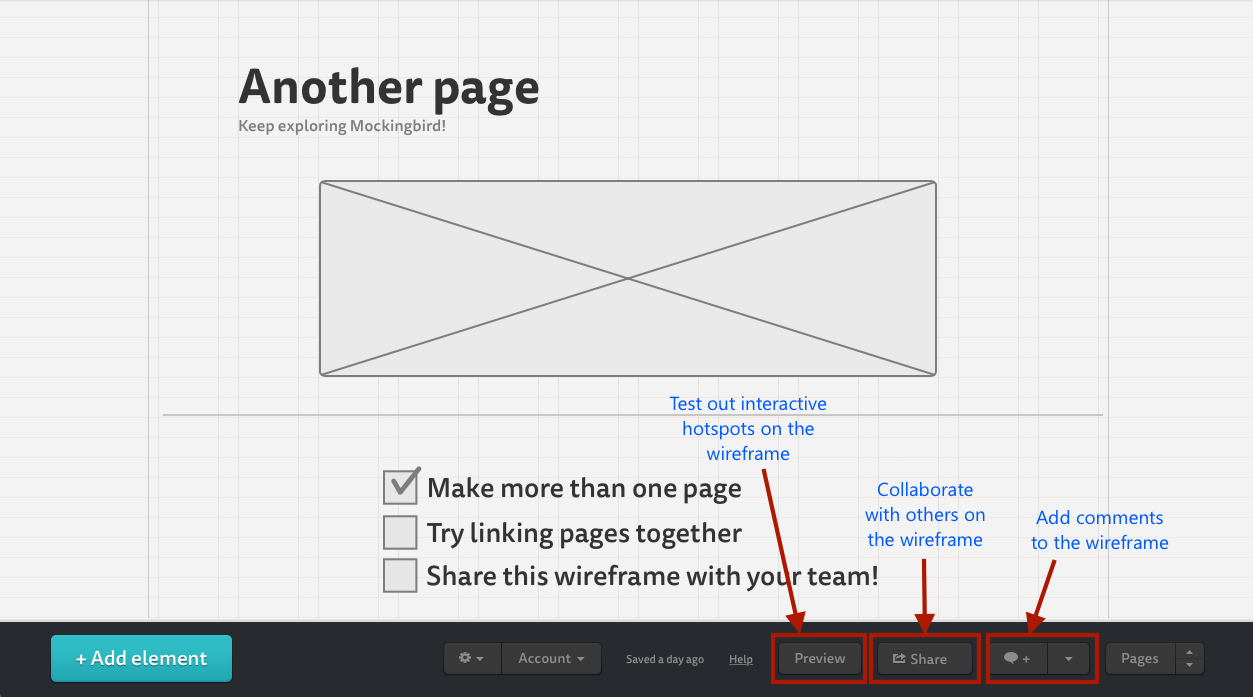

On Mockingbird you can create many pages for your webpage wireframes. Start wireframing by dragging and dropping the controls in the left panel into your pages. Some cool features include adding comments on the wireframe and sharing the wireframe with others for collaborative editing.

Linking pages

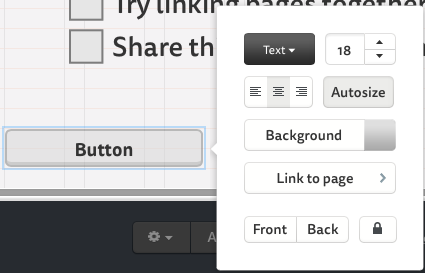

To link buttons to pages in Mockingbird, you can double click on the button, click on Link to page and select a page you want the button to link to. Hit Preview to test the linking out.

Like grids?

You're in luck - Mockingbird happens to have grids as well. Click on the Settings icon (the cog) in the bottom pane, hover over columns, then select the number of grid columns per page you'd like.

Exporting your wireframes

Click on the Settings icon in the bottom pane, and hover over Export. You can either export your wireframes as a PDF or PNG. The downside of this is that your wireframes are no longer interactive (i.e. button navigation no longer works), but not to worry - Invision is here to help!

3. Invision

If you feel like the linking tools in Pencil weren't good enough, or you have screenshots of wireframes but don't know how to link them, then Invision is your best friend. It's completely free, and it'll turn those screenshots into interactive wireframes (a.k.a. click dummies).

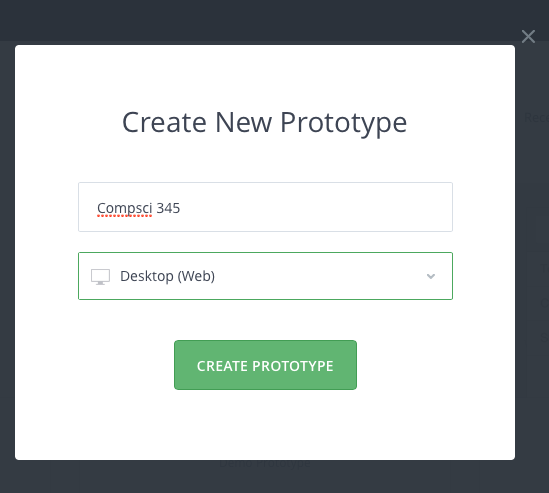

After creating an account, click on the plus (+) sign and give your prototype a name and type. We'll be using Desktop (web) for the purposes of this assignment, but as you can see, you can also use Invision for mobile apps and even watches!

You'll need to upload the screenshots of your pages separately. If you need to split a PDF file into separate wireframe pages, here's a tool you could use.

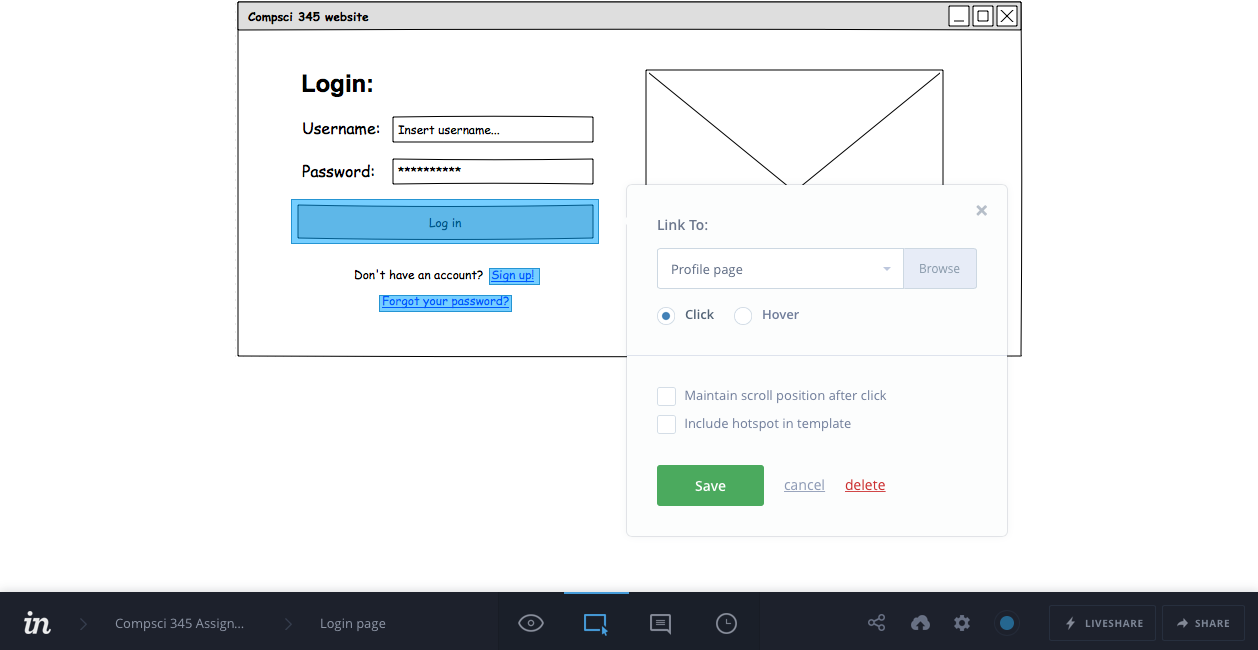

Click on one of the uploaded screens, then just click and drag on the screen to create hotspots.

These hotspots are basically the areas of interaction in your webpage. After creating a hotspot, you can specify a page it navigates to. Alternatively, you can also specify a certain point on the same screen that the hotspot will jump to when clicked. Hit P to go into preview mode and test those hotspots out!

Also check out...

Balsamiq - Free for the first 30 days, then you have to buy a license to save your work. You could screenshot the wireframes you make in Balsamiq to get around this. Otherwise a great wireframing tool with community-created stencils you can add.
Moqups - Another HTML5 app for wireframing. The downside with Moqups is that the free version does not allow you to export your wireframes. Again you could get around this by taking screenshots of the wireframes you make in Moqups.
Creator Ionic - Very handy tool for creating interactive mobile wireframes!

Building out your HTML pages

After creating your digital wireframes, it's good to build it out to see what your designs actually look like when applied to html pages. Here are some tools to help you create your html pages and develop your designs:

1. Atom

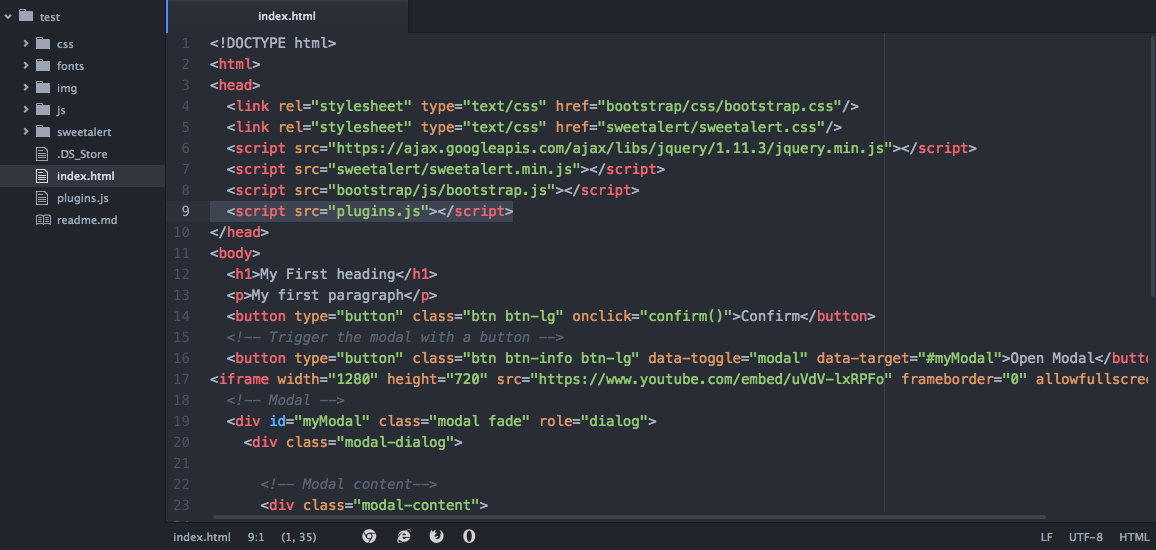

You may be wondering what to use to write all your code in. Well, it all starts with the atom. No literally, it does. Atom is an open source text editor made by the folks at GitHub, and we recommend you use this to create your webpages. It's lightweight, powerful and extremely easy to use.

Adding a new or existing project

To start a new project in Windows, go to File > Open Folder... (go to File > Open... for Macs). Navigate to where you want your new project to be saved, then create a new folder. This new folder is where all your files for the project will be stored. Select your newly created folder, then hit ok.

To add an existing project, do the same steps, except instead of creating a new folder you can just select your existing project folder.

You should see your folder (with any existing files) in the left hand pane. Click on the various files to view and edit them.

Adding packages to Atom

Being open source, Atom has awesome extensibility thanks to the work from other developers. We can easily add packages to Atom should we require additional functionality. To access the Atom settings pane for Macs, go to Atom > Preferences.... For Windows, go to File > Settings. Click on the "Packages" tab - here you can see all the existing packages you have preinstalled packages that come with Atom. Click on the "Install" tab to start searching for packages online and installing them.

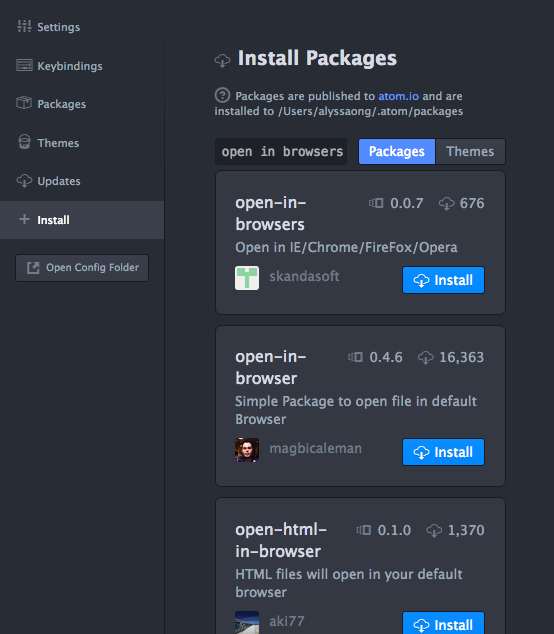

As an example, let's say we want to install a package that allows us to run our html file in many different browsers straight from Atom. To do this, we could install the open-in-browsers package. Open the Atom settings pane, go to the "Install" tab (as described above) and search for "open-in-browsers".

Hit install and that's it! Now, if you right click any html file in the left pane, you'll see the Open in browsers option which lets you run the html file in the browser of your choice. Check out all the packages here and have fun exploring!

Other text editors worth mentioning

Sublime Text - One of the most popular, easy-to-use text editors out there. The only downside is that you'll have to pay for the full version.
Visual Studio Code - Fun fact: VS Code was built on Atom.

2. HTML, CSS and JavaScript

HTML, CSS and JavaScript are the essential coding languages needed to build web pages. As we go through the basic concepts, we will also build a simple website as part of the tutorial so be sure to have Atom (or your IDE of choice) open!

HTML

When we make websites, we start with making the html file. Html defines the structure and content of your webpage. The html language is made up of html tags, that look like this: <tagname>content</tagname>. Let's try writing some html. Add a new project in Atom as described in the instructions above, then right click the project folder in the left hand pane of Atom and click on New File. Name the file index.html - the naming here is very important. In a website, the index.html page represents the home page, or the first page the user will see upon entering your website. Copy and paste in the following lines into the html file:

<!DOCTYPE html>
<html>
<head>
<title>My first webpage</title>
</head>
<body>
<!-- This tag defines large headings -->
<h1>Paragraph header</h1>
<!-- This tag defines paragraphs -->
<p>My first paragraph</p>
</body>
</html>

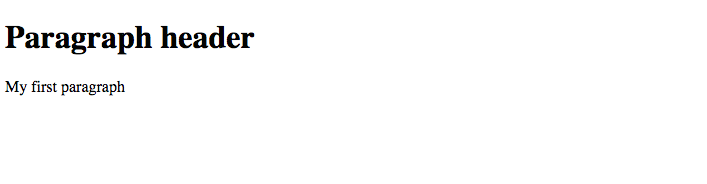

Read this for a detailed explanation of all the tags in the above snippet of html. Then, open the html file in your browser. You do this by double clicking on the html file inside your actual folder in Windows Explorer for Windows users, or in Finder for Mac users. The other way (and also the recommended way!) is to add an Atom package that lets you run it in the browser - to do this, refer to the instructions above on how to add packages to Atom. Your website should look like this:

The h1 tag represents a large header, and the p tag represents a paragraph of text. Let's try creating a table using html as another example. A table consists of a table header (a row with titles for each of the columns), and then there's the body of the table, which is made up of rows and columns that contain the content. Copy and paste this simple table right underneath the <p>My first paragraph</p> line in your html file:

<table>
    <!-- The title row -->
    <tr>
        <th>Name</th>
        <th>Email</th>
    </tr>
    <!-- The data rows -->
    <tr>
        <td>John Smith</td>
        <td>jsmith@gmail.com</td>
    </tr>
    <tr>
        <td>Rick Morty</td>
        <td>rmorty@yahoo.com</td>
    </tr>
</table>

Run the html file in your browser, and your table should look like this:

As you can see, the tr tag represents each row of the table, the th tag represents a table column title and the td tag represents the columns that contain content.

Some other commonly used html elements you should have a read up on are:

CSS

After defining the structure of the page, we also need to customize the styling of the page elements, such as its colour, size, or font. It is possible to do this in the html file itself, but it can make it very messy. Hence, we use css to define the presentation and styling of our html document. We write our css code in another css file separate from the html file. Let's try applying css to our html document created in the section before. Right click on your project folder in Atom, click New File, and name it style.css. Copy and paste the following into your style.css file:

/* Make the header text orange and center the header */
h1 {
    color: orange;
    text-align:center;
}

p {
    font-family: "Arial";
    font-size: 20px;
}

Let's use css to style a table as another example. We'll increase the padding around each column, like this:

/* Select all the td (column) elements and space them out */
td {
    padding: 20px;
}

But... If you run your project you won't see the styles being applied, and that's because we haven't "linked" the html and css file yet. We need to add a reference to the css file in our html file. Copy and paste the reference right under the title tags of your html file, like this:

<title>My first webpage</title>
<!-- Referencing CSS files -->
<link rel="stylesheet" type="text/css" href="style.css"/>

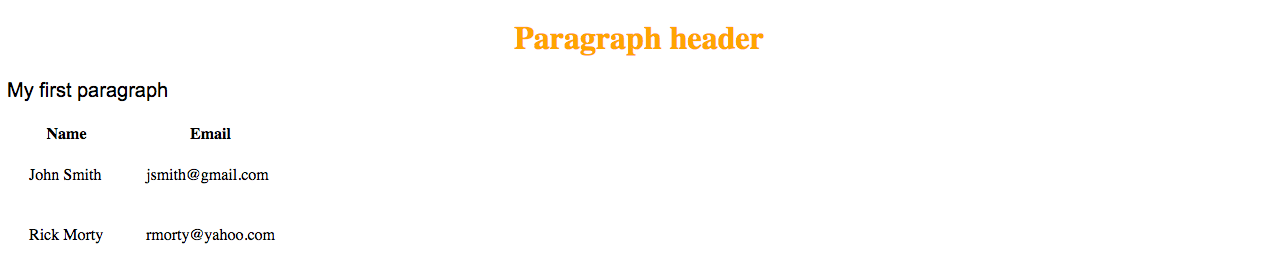

Now run your index.html file in your browser. You should see the following:

We recommend you read up on how css can be used to style the following:

JavaScript

Lastly, we need a way to describe the behaviour of our webpage. For instance, when the "submit" button of a form is clicked, the form data is captured and sent to a server. We use JavaScript to define the behaviour of our webpage. Like css, we usually write our JavaScript code in another js file separate from the html file. This way, our html file is much neater.

Let's try creating a button in our html page, then applying JavaScript to the button to make something happen when the button is clicked. To add a button to our webpage, copy and paste the following line under the table:

<button type="button" id="myBtn">My button</button>

Right click on the project folder in the left pane and click New File. Name the file index.js. We want to configure the button's behaviour. Copy and paste the following lines of code into the index.js file:

// Only add the listener after the html document is fully loaded
document.addEventListener("DOMContentLoaded", function(){
    // Get the submit button from the html by its id
    var myButton = document.getElementById("myBtn");

    // When the submit button is clicked, execute myFunction
    myButton.addEventListener("click", myFunction);

    function myFunction(){
        // This function is our event handler. An alert shows when the submit button is clicked.
        alert("My button was clicked");
    }
});

We need to wait for the DOM content to be fully loaded to ensure that our click event listener is only attached to the button after the entire html document is loaded. This is to prevent situations where the JavaScript might try to access the button before the button is even loaded on the html document. Similarly with our css file, we'll need to add a reference to the JavaScript file in the html file. Copy and paste the following lines into the section of your html file, after the reference to your css file:

<link rel="stylesheet" type="text/css" href="style.css"/>
<!-- Referencing js files -->
<script src="index.js"></script>

NOTE: if you put your css or js files in folders, you would need to reference it relatively. So for example if your index.js file were saved in a folder called "js", you'd need to reference it like this instead:

<!-- Using relative link -->
<script src="js/index.js"></script>

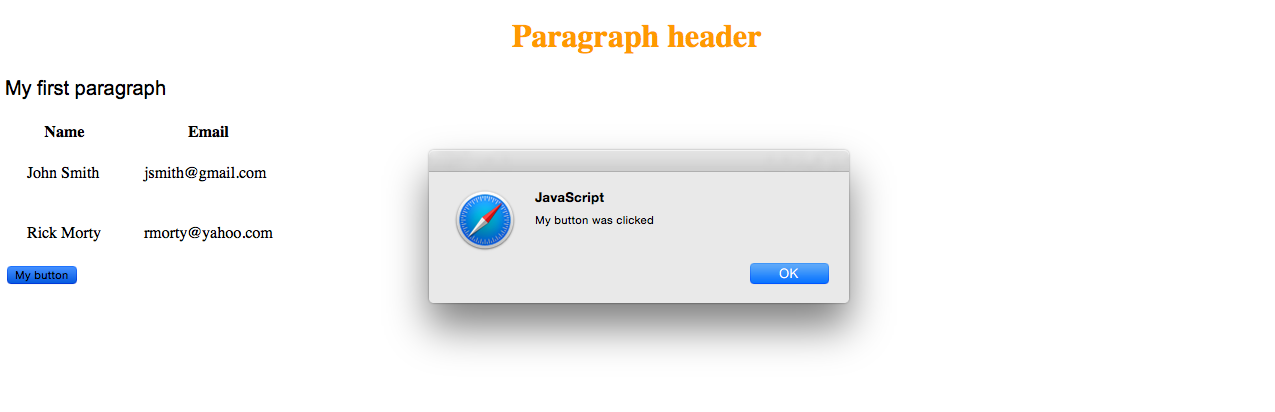

Now, run the html file and then try and click the button. An alert should pop up (there may be slight differences depending on the browser you are using):

We recommend you read up on these core JavaScript concepts:

Additional resources

If you feel that your html, css and/or JavaScript is very weak, we definitely recommend you try these really awesome hands-on tutorials to learn and practice coding in html, css and JavaScript:

Think you already know html, css and/or JavaScript but just need a refresher? Here are some good tutorials you can read through:

Overview

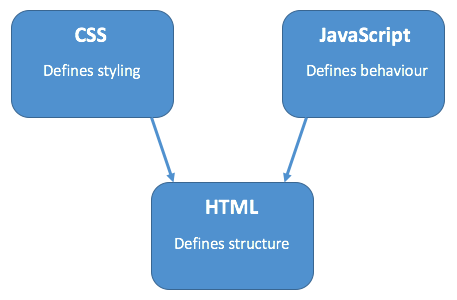

So as a whole, html defines the page structure, and css and JavaScript "add" onto html to define style and behaviour.

3. Colour schemes

Every website should have a colour scheme. Picking the colour scheme can be a bit of a challenge, but fortunately we've got some tools that will get you started.

Adobe Color CC

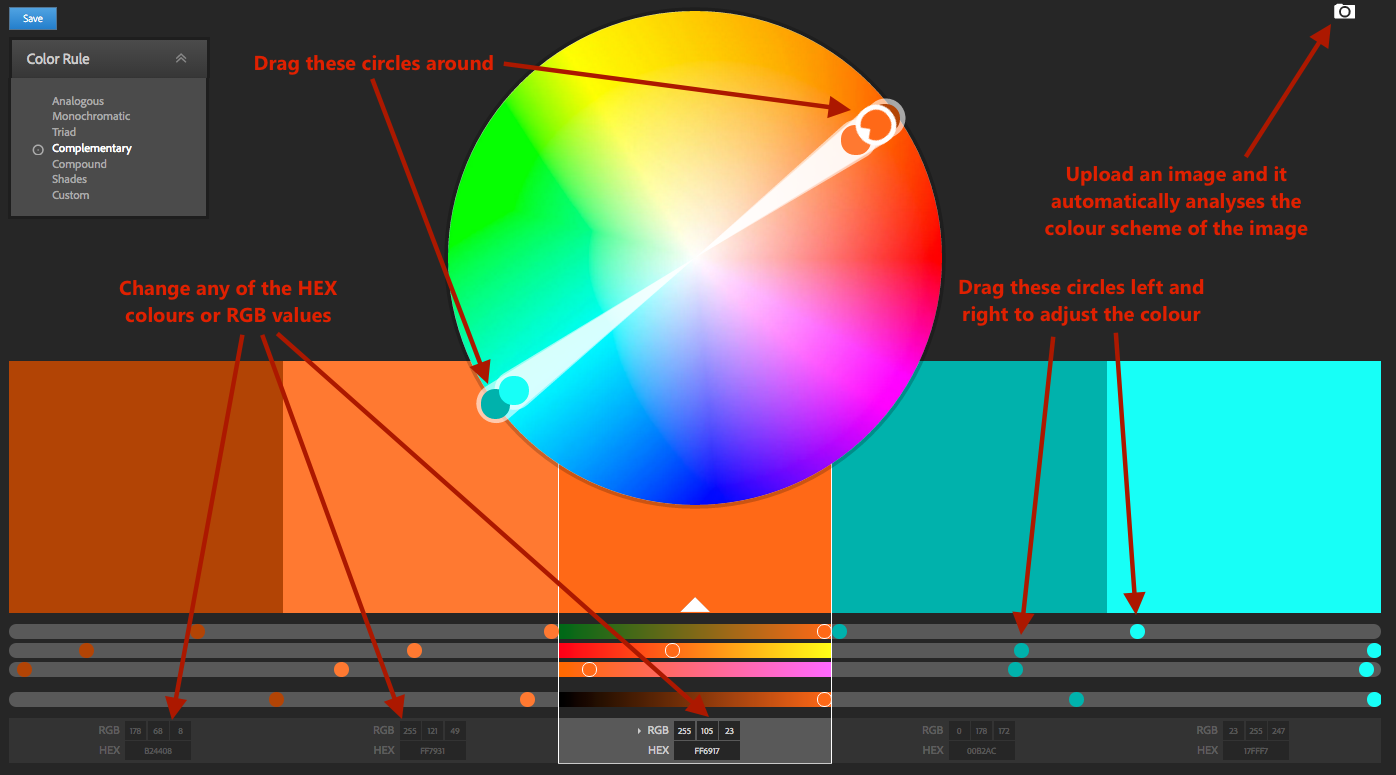

Try it out! Adobe Color CC allows you to pick your colour scheme based on colour rules, like analogous, monochromatic and complementary. After you select a colour rule, try dragging the circles on the colour wheel around - the colour palette automatically readjusts itself according to the colour rule you selected.

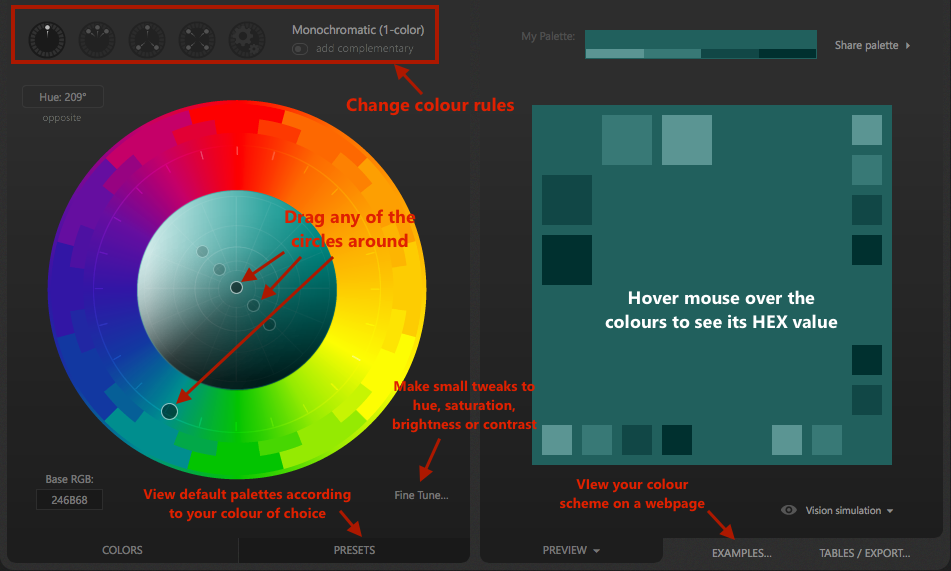

Paletton

Try it out! Paletton also lets you pick your colour scheme based on colour rules, but with more customization and control available. Hover over the various colours and shades in the square palette to view their hex codes.

4. Bootstrap

Bootstrap is a mobile-first front-end framework that will make responsive web development a breeze. Long story short, it'll instantly help make stuff look pretty when you insert elements into your webpage, and help you add some really cool functionality to your webpage. You won't be allowed to use templates though.

Adding Bootstrap to your project

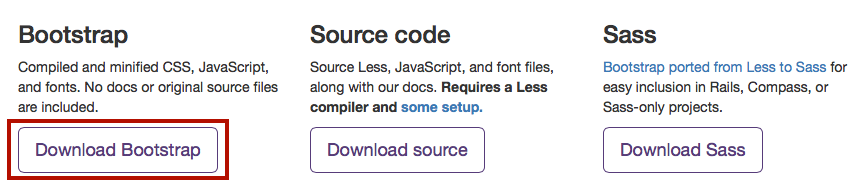

To add Bootstrap to your project, head over to their homepage, click on Download Bootstrap, then click on Download Bootstrap again.

bs-dl

After unzipping, copy the contents of the bootstrap folder and paste it into the root of your project folder. We then need to reference the relevant scripts within the head tags of our html file:

<head>
    <!-- Add these lines somewhere between the head tags -->
  <link rel="stylesheet" type="text/css" href="css/bootstrap.css"/>
  <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.3/jquery.min.js"></script>
  <script src="js/bootstrap.js"></script>
</head>

Note that Bootstrap has JavaScript plugins, and as such, jQuery is needed for these to work. Thus, we need the second line. You may also have a different folder structure depending on where you pasted the contents of the bootstrap folder - reference bootstrap.css and bootstrap.js according to your folder structure.

Using Bootstrap in your webpages

Luckily, Bootstrap provides great documentation on their webpage and has lots of community support. To see how Bootstrap is applied, let's try making a button to start off.

Insert the following line of code in the body tag of your html file:

<button type="button" class="btn btn-lg">Large button</button>

Run your html file in your browser. Your button should look something like this:

By adding classes, Bootstrap provides us with styles that we can apply to our button - no longer do we have the ugly default html button. For more Bootstrap button customizations, view the documentation here. Scroll through the documentation to see the customizations you can apply on other elements too. If you want tutorials on how to use Bootstrap, refer to this link.

Customizing Bootstrap styles

It's highly likely that you'd want to use your own colour scheme, borders and fonts for your website elements. The good news is, we can customize Bootstrap's styles by overriding the CSS classes with our own styles. As an example, let's try customizing the colour and border of the large button we made.

First of all, let's make a CSS file called "custom.css". This is where all the customization for the Bootstrap styles will go. To customize the button, we need to figure out which part of the CSS needs to be changed. If you right click the large button (in your browser) and click "Inspect Element", a pane appears that lets you see the styles that are being applied to the selected element. You can modify CSS in the pane itself to see your styles being applied in real time. Here is a video showing you how you can do this.

Let's try making the background of the button a different colour in the Inspect Element CSS pane. As you can see, the colour is coming from the background-color attribute of the .btn-primary class. We can either change the background-color attribute in the .btn-primary style directly, or we can add a background-color attribute to the .btn-lg class and override the default style by Bootstrap.

You should be able to see the colour of your button changing on the spot as you modify the background-color attribute in the inspector. Now that we've identified the classes that affect the colour of the button, we need to override these in our custom.css file.

Go back to your code, and copy and paste the following snippet into the custom.css file:

.btn-lg{
  background-color: #5C2D91;
    color: #FFFFFF;
}

In this snippet of code we made the background color of the button purple, and the button font white. There's just one more thing we have to do, and that's referencing the css file in our html file. Go to the index.html file and add this line between the head tags:

<link rel="stylesheet" type="text/css" href="custom.css"/>

Run the html file in the browser and you should see that the button now looks like this:

But what if you only wanted to change the colour for one particular button without affecting the styles of all other large buttons you add into your website in future? To do this, you can attach an id to the button in the html file, then modify the background colour by selecting the id from the css. So your html code for the button would look like this:

<button type="button" class="btn btn-lg" id="myPurpleBtn">Large btn</button>

And your css for that particular button would look like this:

#myPurpleBtn{
  background-color: #5C2D91;
  color: #fff;
}

The styling is now unique to that button.

Using Bootstrap icons

In Bootstrap, icons are called glyphicons, or glyphs. You may have noticed when you added Bootstrap to your project, there was a folder called "fonts" that had glyphicon-halfling files. These are what Bootstrap uses to support icons in your website. Let's try adding some glyphs to our webpage. Go to your index.html file and add the following inside the body tag:

<p>Envelope icon: <span class="glyphicon glyphicon-envelope"></span></p>
<p>Search icon: <span class="glyphicon glyphicon-search"></span></p>

Run the html file in your browser, and you should see the following:

For a full list of glyphs you can use, refer to this link. If you feel that Bootstrap's glyphs don't provide you with enough icons for your website, you should definitely check out Font Awesome. They have a much larger range of icons available for you to use - view their list of icons here.

5. Working with forms

It is extremely common for websites to take in user input, such as filling in a feedback form, registering for an online account, or logging in. We generally use forms for this. Forms contain a whole bunch of controls that collect user input with a submit button at the end - you can read more about forms here. Let's use a feedback form as an example. We will first create a feedback form in html, then retrieve user input with JavaScript upon clicking the submit button. We assume that you have completed the html, css and javascript, as well as the Bootstrap tutorial above.

Form appearance

Bootstrap provides styling for forms, which we will use. For more detail on Bootstrap forms, check out this link. The next 3 chapters have more info on Bootstrap form inputs which are very handy when you try to customize your form. Go into your index.html page and copy paste the following lines of code before the closing body tag </body>:

<!-- Feedback form-->
<form role="form" name="userform" id="userform">
    <!-- Name textbox -->
    <div class="form-group">
        <label for="name">Full Name:</label>
        <input type="text" class="form-control" id="name">
    </div>
    <!--Feedback textarea -->
    <div class="form-group">
        <label for="email">Email:</label>
        <input type="email" class="form-control" id="email">
    </div>
    <!-- Submit button -->
    <button type="submit" class="btn btn-default">Submit</button>
</form>

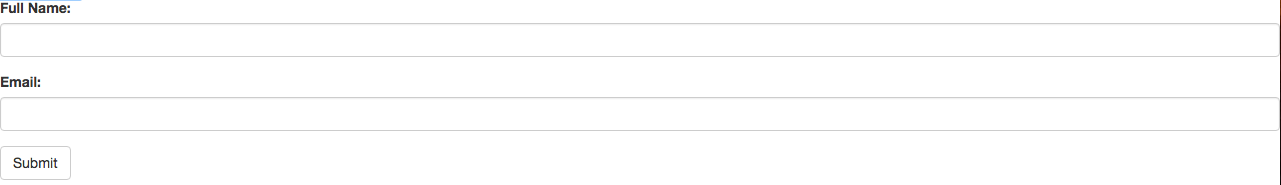

To see what other form inputs Bootstrap has, check this link. The input type email means that the form will not submit until the input value looks like email format (e.g. myemail@blahblah.com). Run the index.html in your browser and you should see a simple form consisting of 2 text inputs.

Now, we need to handle the form's behaviour in our JavaScript code.

Handling form behaviour

When the user clicks on the form's submit button, we want to collect their input. More specifically, we want to 'listen' for the 'submit' event, and then read the form inputs. We recommend you read up about event listeners before continuing. If you haven't yet already, create a file named index.js in your js folder, then reference it in your html like this:

<script src="js/index.js"></script>

Copy and paste the following into your JavaScript file:

// Wait for the html document to finish loading before performing actions on our form
document.addEventListener("DOMContentLoaded", function(){
    // Create a variable that contains your feedback form
    var form = document.forms.userform;

    // Attach a "submit" listener to your user form, and define the function that is called when the event is triggered
    form.onsubmit = function (e){
        // Prevent the page from automatically refreshing after submitting the form
        e.preventDefault();
        // Collect user input and store it as a user object
        var newUser = {
            name: document.getElementById("name").value,
            email: document.getElementById("email").value
        }
        // Show the newUser object in the console
        console.log(newUser);
        // Clear all form fields
        form.reset();
    }
});

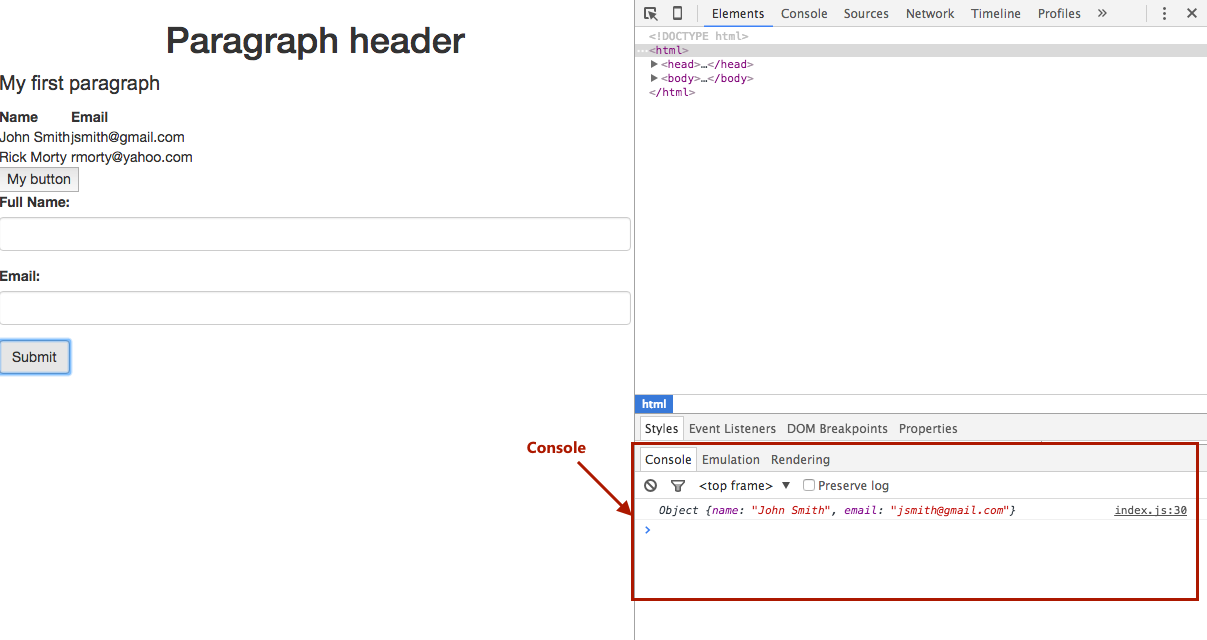

Run the html file in your browser, then go right click > Inspect Element. A pane should pop up - click on the 'console' tab in the pane. When you write values into the form and submit it, you should see the newUser object being printed in your console. Expand the object and you can see the values you input into the form being saved into the newUser object. Your console may look different depending on the browser you use:

Form input validation

Form validation is basically making sure the user enters healthy inputs before submitting the form. For instance, making sure an entered name is at least 4 characters in length, or preventing the user from submitting blank feedback. We can add attributes to input elements for form validation. For instance, one would use the required attribute to denote that the input value cannot be left as blank, and the minlength attribute to denote that the input value must have a minimum number of characters. Let's apply some validation to our existing form by making the following changes to your code:

<!-- Change the line with the name input to this -->
<input type="text" minlength="4" class="form-control" id="name" required>
<!-- Change the line with the email input to this -->
<input type="email" class="form-control" id="email" required>

We've made it so that both name and email inputs must be filled out before the form is successfully submitted, and the name input has to have a minimum length of 4 characters. Run the html file in the browser, then try violating some of the validation rules during submission e.g. leaving both inputs blank, or writing less than 4 characters in the name input box and clicking the submit button. You can see that you won't be able to submit the form, and the form tells you what you need to do to fulfill the validation requirements. To find out more input attributes you can add, check this link out.

6. Storing data

It is extremely common for websites to take in user input and store it, and chances are you'll want to do this for your website too. To bypass all the complications of setting up a backend to store our data, we recommend you use client side storage called localStorage. With localStorage, websites can store data locally in the user's browser. More outdated browser versions may not support localStorage - check this link out to see if your browser version supports it.

You may be thinking - what if I close my browser, or clear my history or clear my cache? Does this mean all the data in localStorage will be wiped out? The answer is no, your data will still exist in localStorage if you close your browser window, and our data will be stored with no expiration date. So the data will still be there a day, week, month and even a year later.

How to use localStorage

Using localStorage is easy. Everything is done by calling methods on the localStorage object in JavaScript. localStorage stores data in name/value pairs. For instance:

localStorage.setItem('fullname', 'John Smith');

has the name 'fullname', with the value 'John Smith'. If we want to retrieve this data from localStorage, we would need to call the getItem method, like this:

var myfullname = localStorage.getItem('fullname');

The variable myfullname would be 'John Smith'. Lastly, if you want to delete this item from localStorage, we would have to call the removeItem method, like this:

localStorage.removeItem('fullname');

Working with JSON objects in localStorage

What if we want to store objects which have many attributes each, e.g. a "user" object has a name, date of birth, email address, etc. To address this, we can use JSON to represent our objects. If you are unsure of what JSON is, read this. However, one limitation with localStorage is that you can only store strings - so if you tried to store a JSON object into localStorage it wouldn't work. To get around this, we can convert our JSON objects into strings first, then store it in localStorage. Let's use our "user" object mentioned earlier as an example:

var user = {
    name: "John Smith",
    dob: "12/07/1990",
    email: "jsmith@hotmail.com"
}

We have created a "user" object, and it is currently in JSON format. To convert our "user" object into a string, we use the JSON.stringify method on the user object. Overall, the code to convert our object into a string and save it into localStorage would look like this:

localStorage.setItem('user', JSON.stringify(user));

If we need to retrieve the JSON object from storage, we retrieve the string, then convert it back into JSON format using the JSON.parse method:

// Retrieve string from localStorage
var userString = localStorage.getItem('user');
// Convert string to JSON format
var user = JSON.parse(userString);

This only stores one "user" object though. What if we wanted to store multiple user objects? To do this, we could save an array of JSON objects. If you've never worked with arrays of JSON objects before, read the JSON Arrays section of this link. Our array of users would look something like this:

var users = [
    {
        name: "John Smith",
        dob: "12/07/1990",
        email: "jsmith@hotmail.com"
    },
    {
        name: "Ben Jones",
        dob: "21/06/1993",
        email: "bjones@hotmail.com"
    }
]

Here we have an array containing 2 user objects, but you can add as many users as you'd like to the array. You can even have one object in the array. We would then store this array in a similar way to storing JSON objects. We convert it into a string before storing it, like this:

var usersString = localStorage.setItem('users', JSON.stringify(users));

To retrieve our JSON array, we would do the following:

// Retrieve string from localStorage
var usersString = localStorage.getItem('users');
// Convert string to JSON format
var users = JSON.parse(usersString);

Think of it as saving user records to a user table in a database. It's pretty much localStorage.setItem('yourTableName', JSON.stringify(yourTableData));.

Combining forms and localStorage

As an example, let's try combining the simple name and email form we made previously with localStorage. When the user submits the form, the name and email in the form inputs are stored into localStorage. We will then retrieve all names and emails from localStorage and display the data on our webpage in a table. If you haven't yet followed the Working With Forms tutorial above, go back up and complete it before continuing. After that, go to your index.js file, then replace the console.log(newUser) line with the following:

// Check if a saved users table exists in the database
if (localStorage.getItem('savedUsers') === null){
    // If there isn't one, save the new user as an array into the 'savedUsers' table
    localStorage.setItem('savedUsers', JSON.stringify([newUser]));
} else {
    // If there's already a table of saved users, retrieve all the saved users in the table first
    var existingUsers = JSON.parse(localStorage.savedUsers);
    // Add the new user to the array of existing users
    existingUsers.push(newUser);
    // Save the updated list of users into the 'savedUsers' table
    localStorage.setItem('savedUsers', JSON.stringify(existingUsers));
}

The above code snippet handles the storing of our users after form submission. Now, we need to display the updated list of users onto the webpage in a table. The number of table rows is dependent on the number of users that are saved, and so we cannot write code for the table directly in the html. Fortunately, we can create html elements using javascript, and then add these into our html document using javascript as well.

Let's start off with retrieving the updated list from localStorage when our html document finishes loading. Go to your index.js file, and copy and paste the following right after the document.addEventListener... line, but before you create the variable containing your user form:

// After html document has finished loading, check if there exists any saved users
if (localStorage.getItem('savedUsers') !== null){
    // If there are saved users, retrieve them from localStorage
    var existingUsers = JSON.parse(localStorage.savedUsers);
    // Loop through the saved users, and create a table row for each user
    for (var i=0; i< existingUsers.length; i++){
        // existingUsers[i] represents the user object at index i of the existingUsers array
        createRowInHtml(existingUsers[i]);
    }
}

If you're unsure of what the existingUsers[i] bit means, check out this link. createRowInHtml is a function that takes in a user object as a parameter, and creates a row in html displaying the user object. The function will require us to access the table, and the easiest way to access an element in JavaScript is by its unique id in the html document. Add an id to your table by making the following modification to your <table> tag in your html file:

<table id="usertable">

Now, we will write the createRowInHtml function. Before commencing, there are some JavaScript methods we highly recommend you read about and understand first:

Add the following function to the bottom of your index.js file, after the document.addEventListener("DOMContentLoaded", function(){ ... }); part:

function createRowInHtml(user){
    // Create a row element
    var userRow = document.createElement("tr");

    // Create a column element for the user's name
  var nameColumn = document.createElement("td");
    // Insert the user's name between the opening and closing td tags, e.g. <td>John Smith</td>
  nameColumn.innerHTML = user.name;

    // Create a column element for the user's email
  var emailColumn = document.createElement("td");
    // Insert the user's email between the opening and closing td tags e.g. <td>jsmith@gmail.com</td>
  emailColumn.innerHTML = user.email;

    // Add the name column and email column elements as children of the user row element
  userRow.appendChild(nameColumn);
  userRow.appendChild(emailColumn);

    // Create a variable that contains our table element. Be warned: the id is case sensitive!
  var userTable = document.getElementById("usertable");
    // Add the user row as a child of the table element
  userTable.appendChild(userRow);
};

Run your index.html in a browser. Enter a name and email, hit submit, then refresh the page. You should see your entered user being displayed in the table, like this:

7. jQuery plugins

jQuery plugins are a quick and powerful way to add more functionality to your website and make them more beautiful. These plugins are written by other developers and are usually open source, meaning you can freely use them in your website. The developers of these plugins usually write pretty good documentation on how to use the plugin in your website.

Check out some cool jQuery plugins:

Sweetalert - Your alerts will never look boring again with Sweetalert.
Tubular - Want a youtube video as your background? Check this one out.
Tooltipster - What about some cool looking tooltips?

There are thousands of jQuery plugins out there. After you design the functionality needed for your website, do a search for an existing jQuery plugins you could use to implement those functionalities. Note that some browsers don't work very well with jQuery plugins.

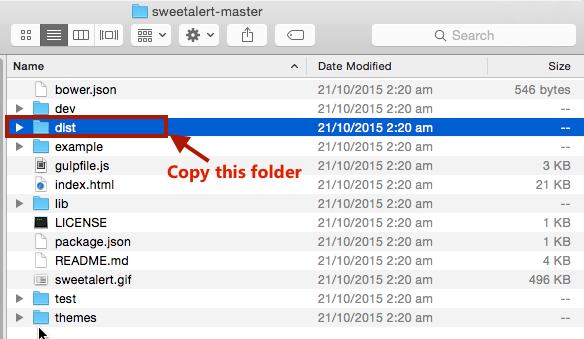

As an example, let's try implementing the sweetAlert plugin into our website. Go to the Sweetalert homepage and download using "Method 3: Download the sweetAlert CSS and JavaScript files". Unzip the file, and in the folder you should see a bunch of other files. The only files you need are the ones in the dist folder. Copy the dist folder, and paste it into the root folder of your project. For clarity, I've renamed dist to sweetalert.

Reference the CSS and JavaScript files for sweetAlert in your html file, like this:

<link rel="stylesheet" type="text/css" href="sweetalert/sweetalert.css"/>
<script src="sweetalert/sweetalert.min.js"></script>

When you reference the CSS and JavaScript files, make sure the file paths are correct (i.e. where you pasted the sweetAlert files) - it may not be the same as ours. Let's create a button that triggers the sweetAlert when clicked. In your html file, add the following in your body tags:

<button type="button" onclick="showalert()">Show me the alert!</button>

The line above adds an onclick listener to our button, meaning that when the button is clicked, the showalert function will be called. Now let's write the showalert function in JavaScript (our click event handler). If you've already created the index.js file from following the tutorials above, go to your index.js file. Otherwise, we'll add a new JavaScript file to our project folder. A quick way to do this in atom is to right click the left pane (where you see all the files), then click New File. We will call it index.js. You can name it anything you like, so long as it ends with .js to indicate a JavaScript file. Then, reference the newly created JavaScript file in the html file, something like this:

<script src="index.js"></script>

Again, make sure you use your own file path. For our example, let's use the success message sweetAlert. As shown in the documentation, copy and paste the following lines of code into the newly created JavaScript file.

function showalert(){
  swal("Good job!", "You clicked the button!", "success");
}

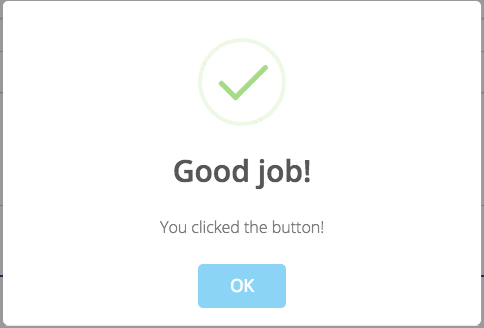

Here, we've created the confirm function that displays the sweetAlert. Run the html file in a browser, and click on the button. The sweetAlert should pop up, and it looks like this:

The sweetAlert homepage has documentation that shows tons of other kinds of sweetAlerts you can use - have fun exploring!

Prototyping Resources

Table of contents

Digital Wireframing

1. Pencil Project (recommended!)

Linking pages

Installing extensions

Creating your own collections

2. Mockingbird

Linking pages

Like grids?

Exporting your wireframes

3. Invision

Also check out...

Building out your HTML pages

1. Atom

Adding a new or existing project

Adding packages to Atom

Other text editors worth mentioning

2. HTML, CSS and JavaScript

HTML

CSS

JavaScript

Additional resources

Overview

3. Colour schemes

Adobe Color CC

Paletton

4. Bootstrap

Adding Bootstrap to your project

Using Bootstrap in your webpages

Customizing Bootstrap styles

Using Bootstrap icons

5. Working with forms

Form appearance

Handling form behaviour

Form input validation

6. Storing data

How to use localStorage

Working with JSON objects in localStorage

Combining forms and localStorage

7. jQuery plugins
